Fractal Design Terra
Premium Mini-ITX Case for Ultimate Compact Builds
10.4L
Ultra-Compact Volume
🔧 Adaptive Design

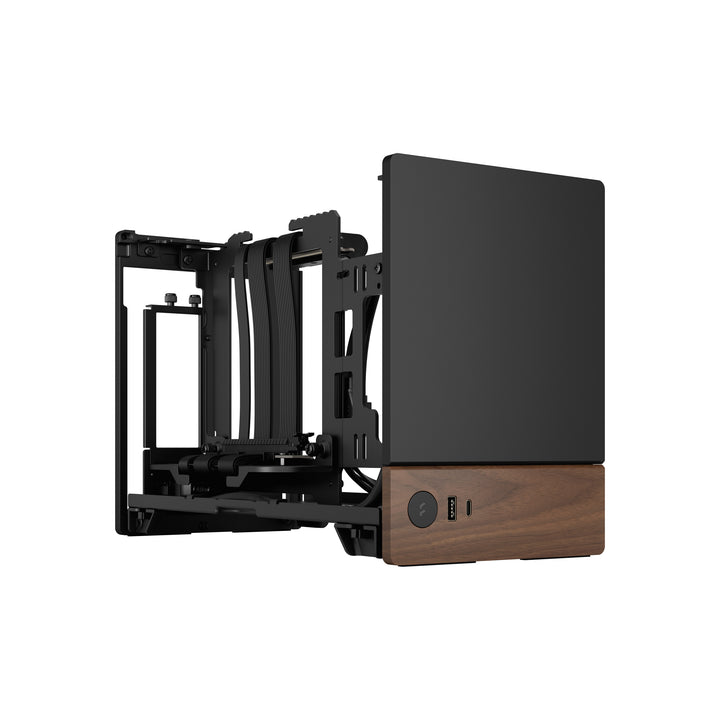

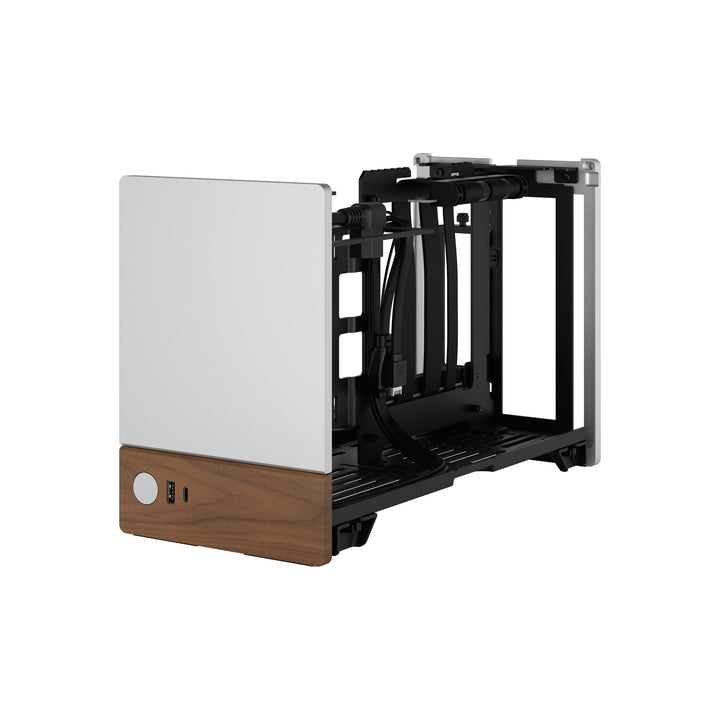

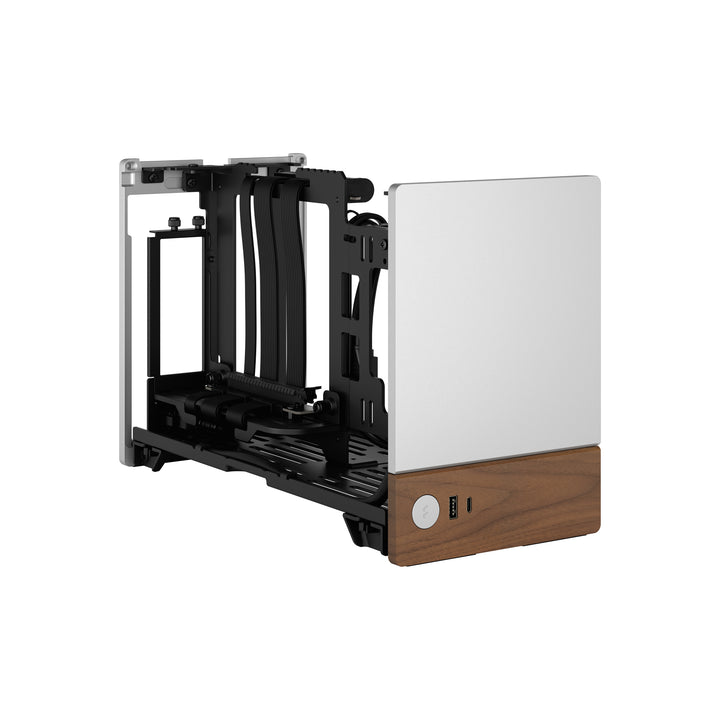

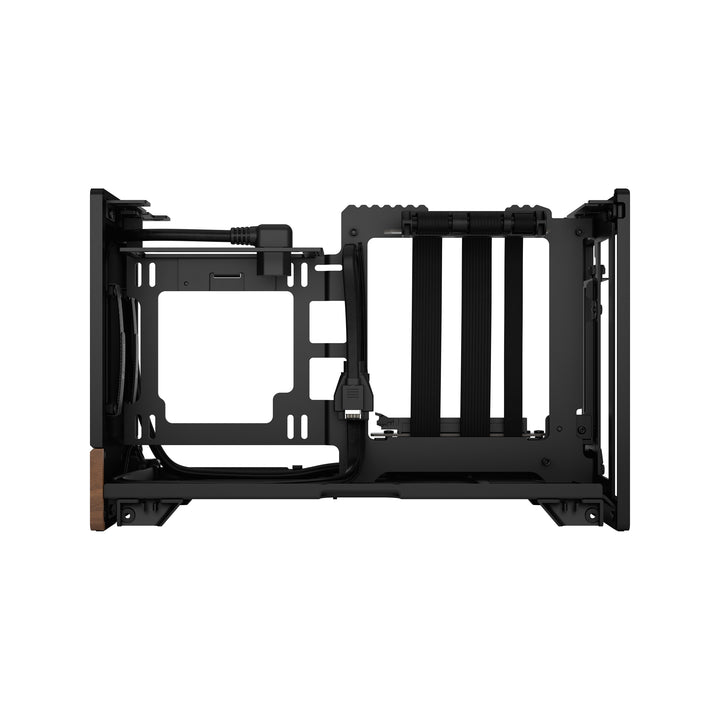

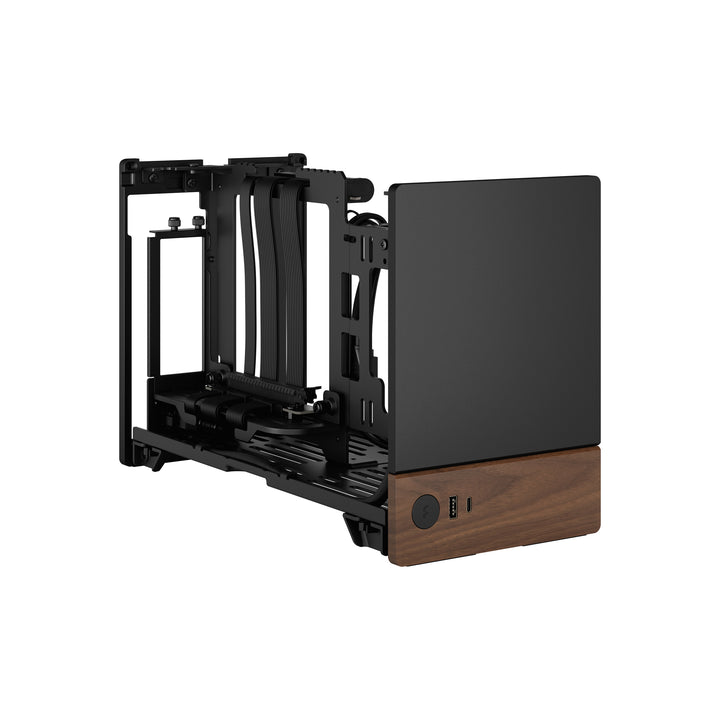

Features an adjustable motherboard spine that lets you choose between maximum GPU clearance or maximum CPU cooler height. Perfect for both gaming powerhouses and productivity workstations.
🔧 Specifications
- 2.5" Drive Mounts 2 (included)
- Expansion Slots 3 (Max GPU) / 2 (Max CPU)

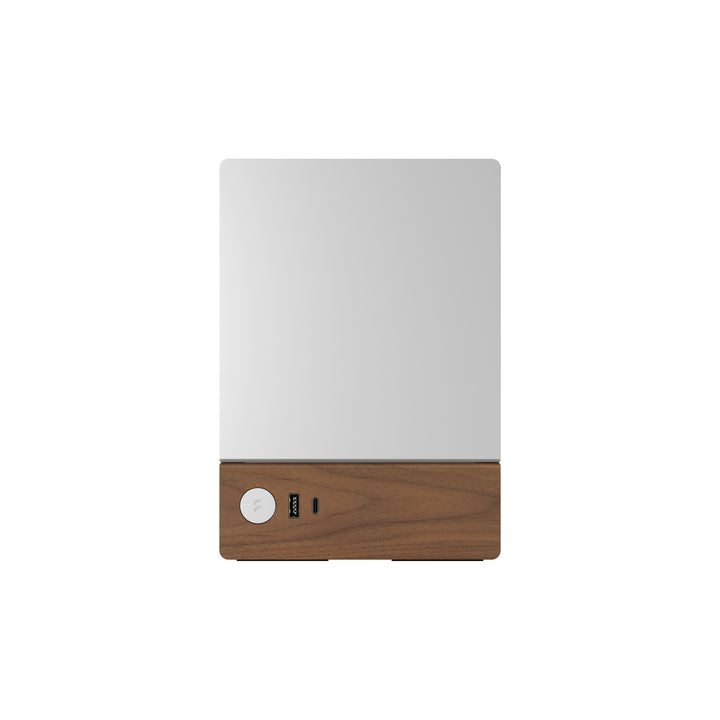

- Front I/O USB-C 20Gbps, USB-A 5Gbps
- Fan Mounts 1× 120mm

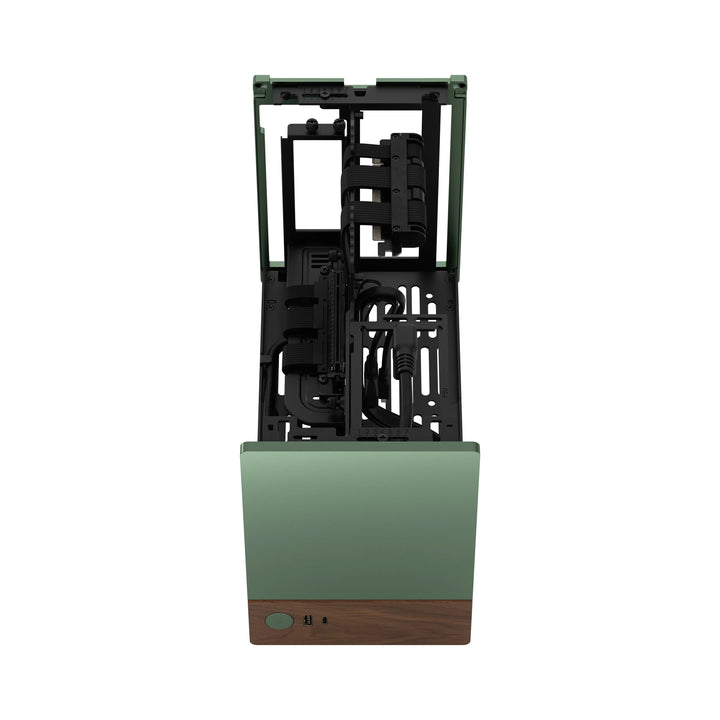

- Tool-less Access All panels
🔌 Compatibility
- Motherboard Mini-ITX
- Power Supply SFX-L / SFX
- PSU Length ≤ 130mm
- GPU Length ≤ 322mm
- GPU Height ≤ 145mm (Max GPU mode)
- CPU Cooler ≤ 77mm (Max CPU mode)
📏 Dimensions
- Case Size (L×W×H) 343 × 153 × 218mm
- Without Protrusions 343 × 153 × 198mm
- Package Size 394 × 215 × 292mm
- Net Weight 3.1kg
- Volume 10.4L (11.4L external)
📦 Package & Warranty
- Contents Case, Accessories, Manual

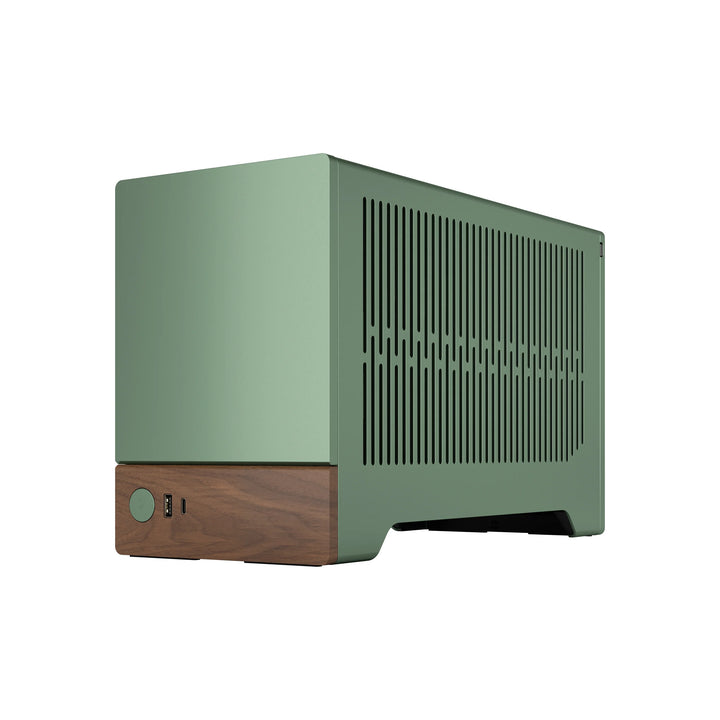

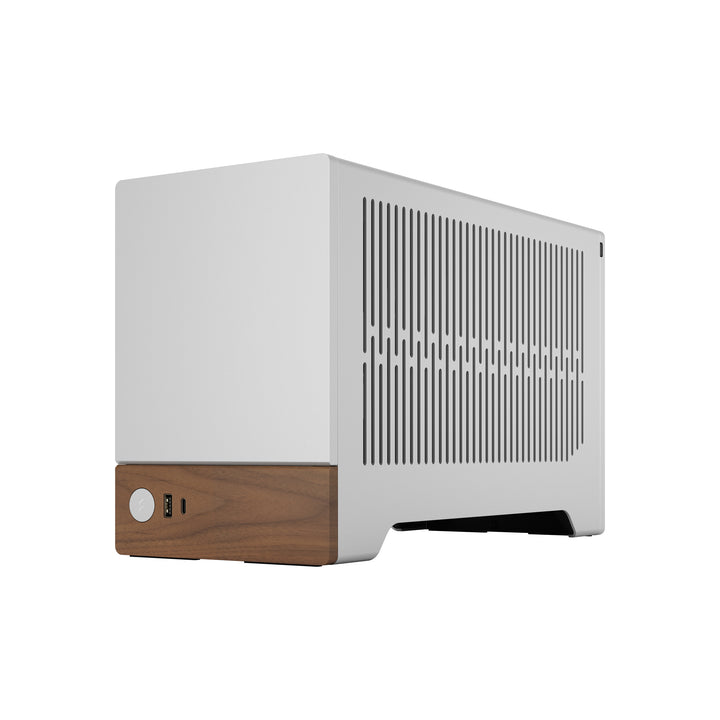

- Colors Available Graphite, Silver, Jade
- Warranty 2 Years
- Radiator Support 120mm Side Mount
⚠️ PCIe Compatibility Note
When using the Terra PCIe 4.0 riser cable with PCIe 5.0 motherboards and graphics cards, set your BIOS PCIe configuration to Gen4 for optimal stability.
معلومات إضافية
| Color |
White, jade, Black |
|---|
Terra
