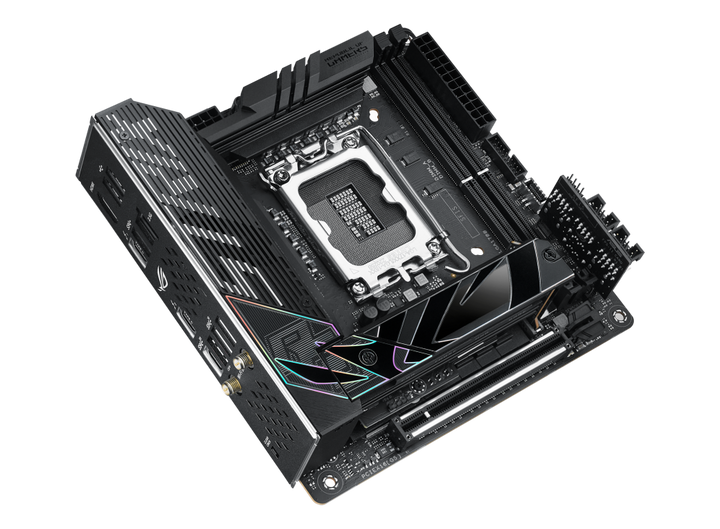

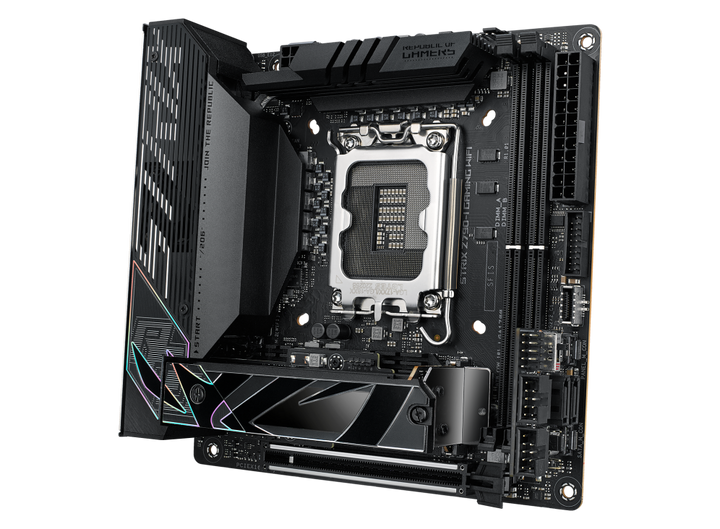

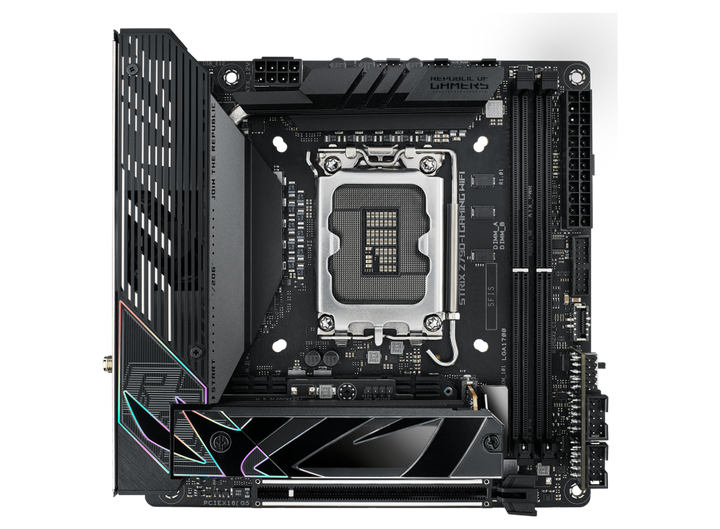

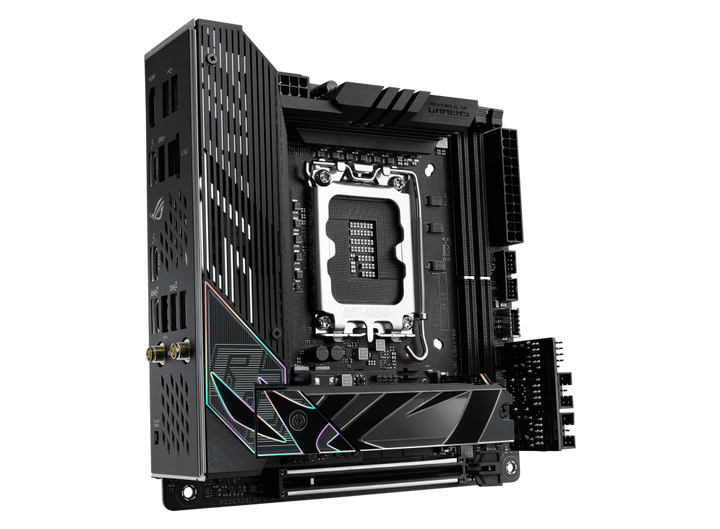

ROG STRIX Z790-I GAMING WIFI
Mini-ITX Gaming Motherboard | Intel Z790 Chipset with Premium Features
Key Features
- Intel Socket LGA1700 supporting 14th, 13th, and 12th Gen processors
- DDR5 memory support up to 96GB with speeds up to 7600MHz (OC)
- Intel Z790 chipset with PCIe 5.0 x16 slot
- ROG STRIX HIVE external I/O hub with premium audio and controls
- Wi-Fi 6E and Bluetooth 5.3 connectivity
- Thunderbolt 4 support with multiple Type-C ports
CPU & Chipset
CPU Socket
Intel® Socket LGA1700
Supported Processors
Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold and Celeron® Processors
Chipset
Intel® Z790 Chipset
Form Factor
Mini-ITX (6.7" x 6.7")
Turbo Boost Support
Intel® Turbo Boost Technology 2.0 and Max Technology 3.0
Memory & Storage
Memory Type
DDR5, 2 x DIMM, Max. 96GB
Memory Speed
Up to 7600MHz (OC), Native 5600MHz
M.2 Slots
2x M.2 slots (PCIe 5.0 x4 + PCIe 4.0 x4)
SATA Ports

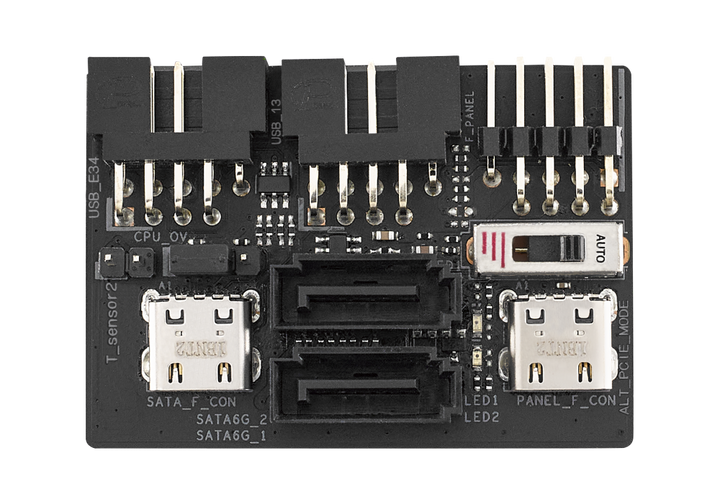

2x SATA 6Gb/s (via ROG FPS-II Card)
Special Features
Intel® XMP, OptiMem II, Dual Channel Architecture
Graphics & Display
HDMI Output
1x HDMI port (4K@60Hz)
Thunderbolt 4
2x Intel® Thunderbolt™ 4 ports (USB Type-C®)
PCIe Slots
1x PCIe 5.0 x16 slot
Display Support
DisplayPort and Thunderbolt™ video outputs
SFF-Ready
Yes (GeForce Cards Compatible)
Connectivity
Wireless
Wi-Fi 6E (802.11ax), 2.4/5/6GHz
Bluetooth
Bluetooth v5.3
Ethernet
Intel® 2.5Gb Ethernet with ASUS LANGuard

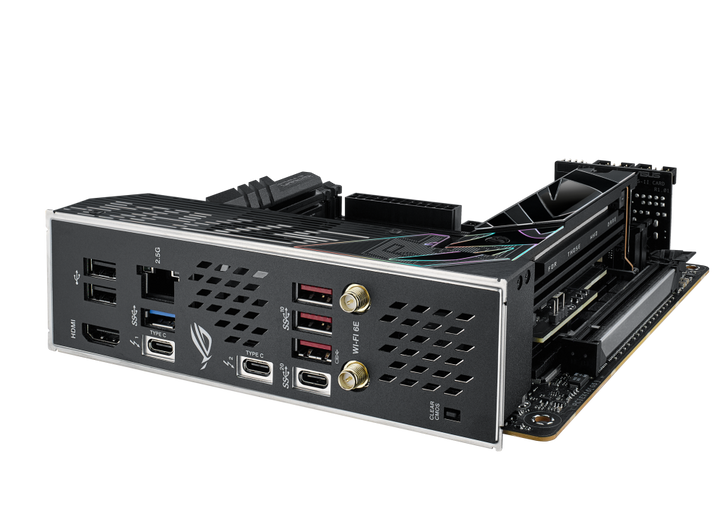

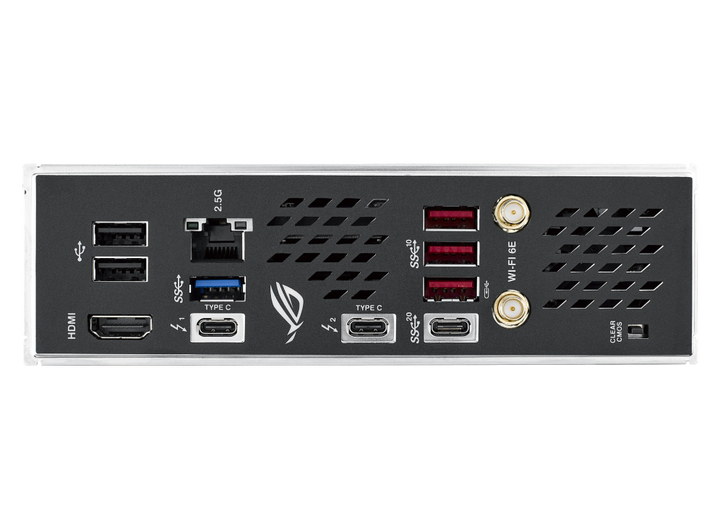

USB Ports (Rear)
9 total: 2x Thunderbolt 4, 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2, 1x USB 3.2 Gen 1, 2x USB 2.0
USB Ports (Front)
3 total: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1
Audio & Premium Features
Audio Codec
ROG High Definition Audio CODEC ALC4050
Audio Quality
118 dB SNR playback, 94 dB SNR recording, up to 32-Bit/384 kHz
Premium Audio
ESS® SABRE9260Q DAC, Silver-plated jacks, Optical S/PDIF
Cooling Headers
1x CPU Fan, 1x AIO Pump, 1x Chassis Fan
RGB Support
Aura Sync, Addressable Gen 2 header
Software & BIOS
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
ROG Software
GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III
ASUS Software
Armoury Crate, AI Suite 3, Fan Xpert 4, Aura Creator
Operating System
Windows® 11, Windows® 10 64-bit
Additional Software
Norton 360 for Gamers, AIDA64 Extreme (60 days trial)

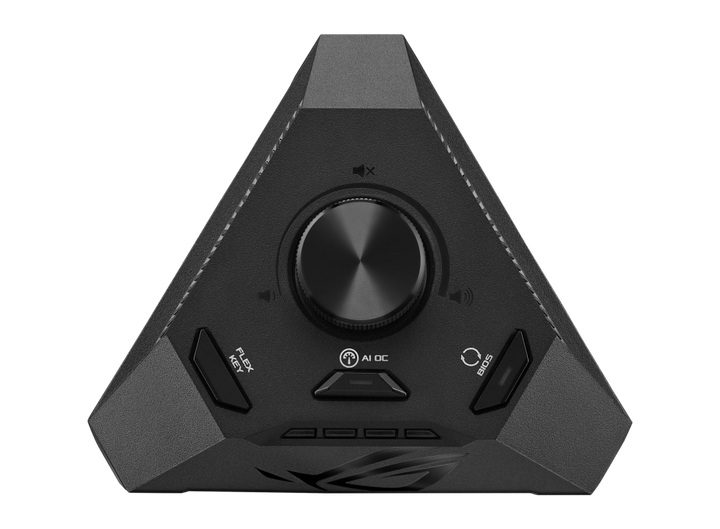

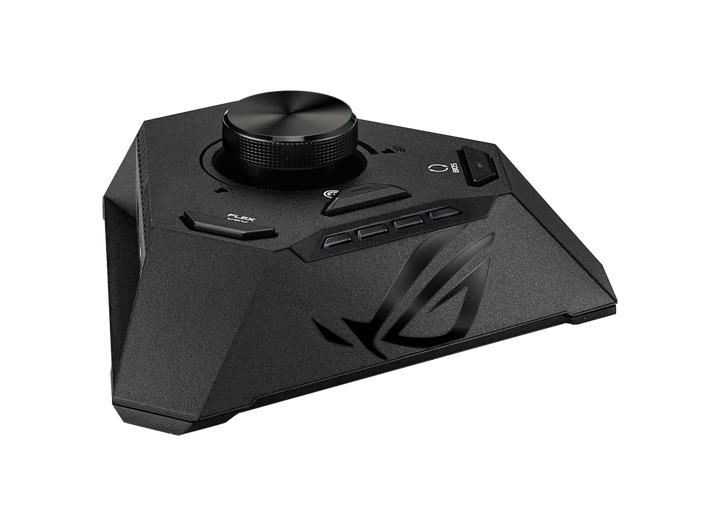

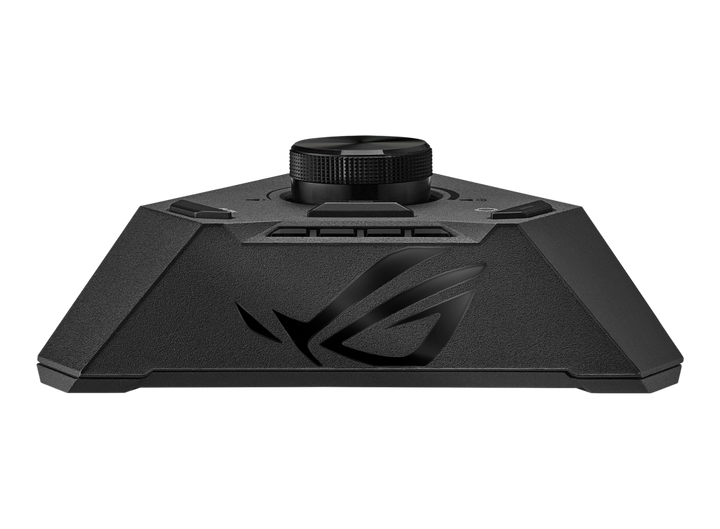

ROG STRIX HIVE - External I/O Hub
The innovative ROG STRIX HIVE provides additional connectivity and premium controls:

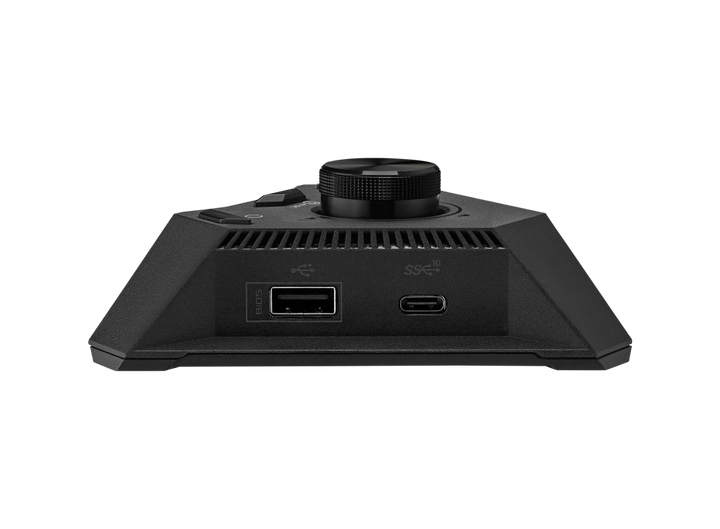

- 1x USB 3.2 Gen 2 Type-C port and 1x USB 2.0 Type-A port

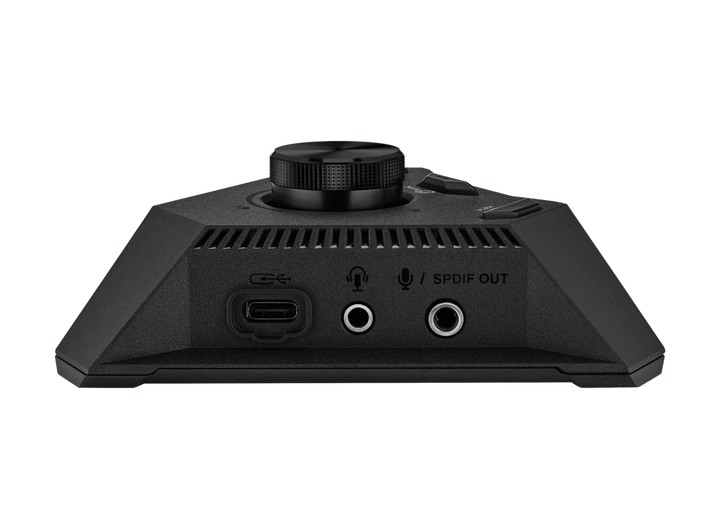

- Dedicated headphone jack with microphone input
- Optical S/PDIF output with independent power solution

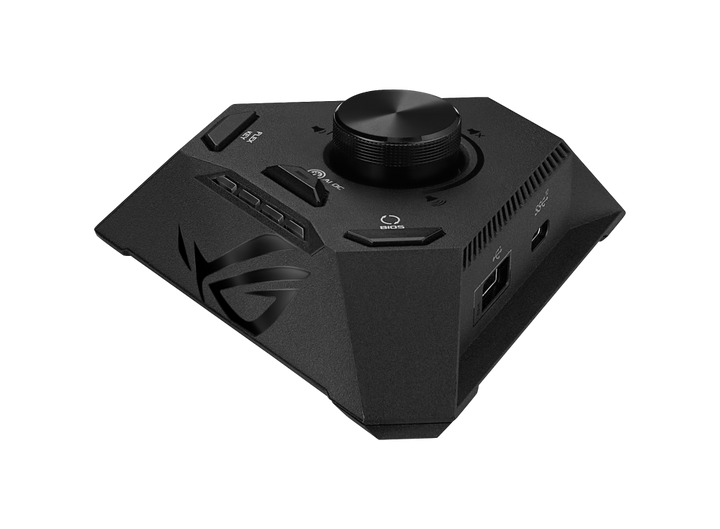

- AI OC button and FlexKey button for custom functions
- BIOS FlashBack™ button for easy updates
- Volume control knob with mute button
- Q-LED diagnostic indicators (CPU, DRAM, VGA, Boot Device)
