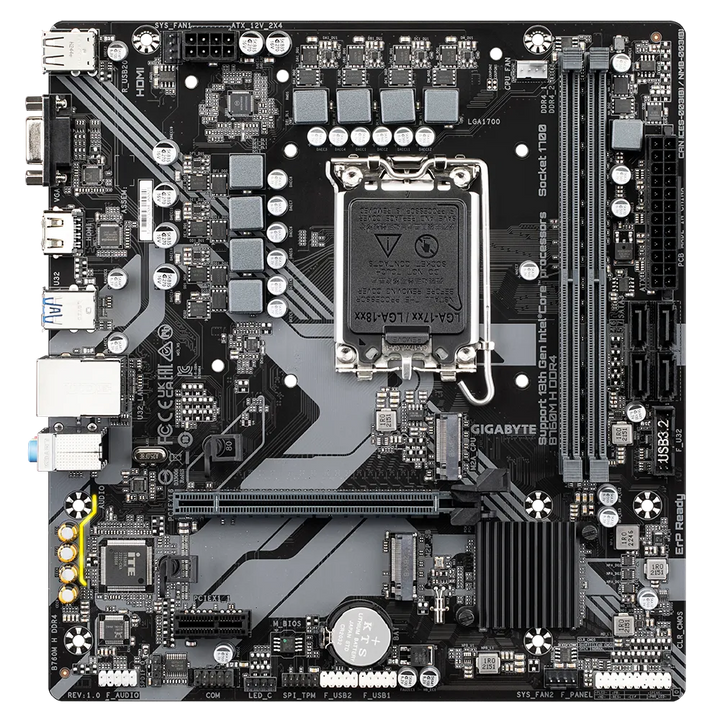

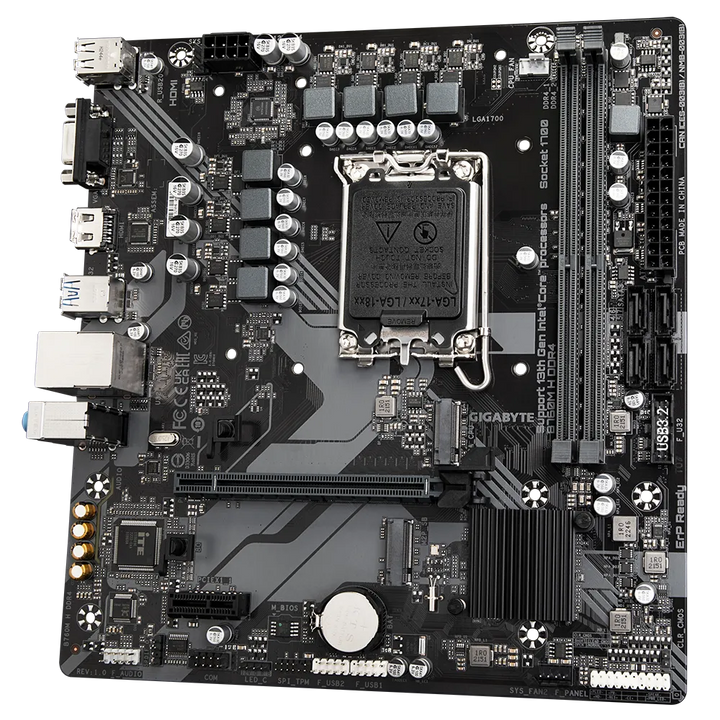

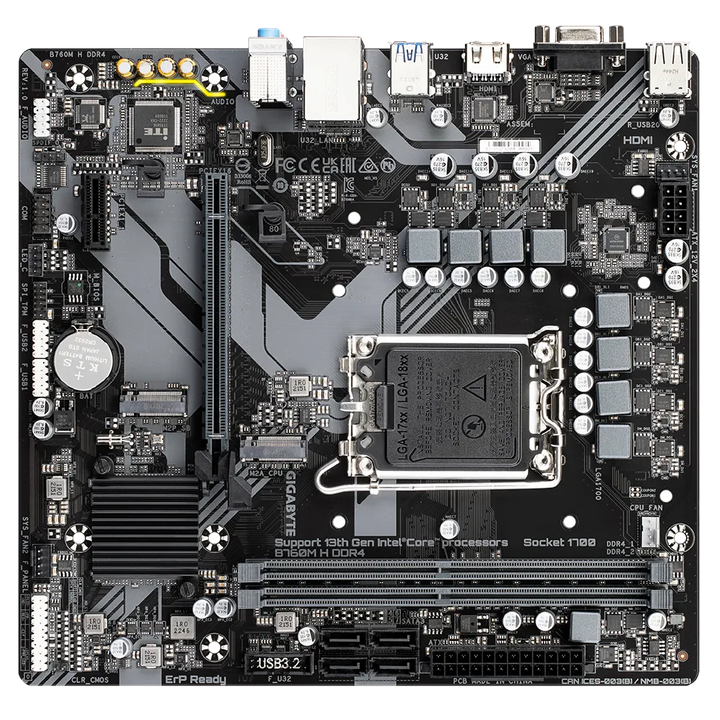

GIGABYTE B760M
Intel B760 Express Chipset • Micro-ATX Form Factor
Performance Ready
🖥️CPU Support
- Intel LGA1700 Socket
- 14th, 13th & 12th Gen Intel Core™
- Pentium Gold & Celeron
- L3 cache varies with CPU
- Advanced CPU Support
💾Memory
- 2 DIMM slots • Max 64GB
- DDR4-3200/3000/2933/2666
- DDR4-2400/2133 MT/s
- Dual Channel + XMP Support
- ECC Un-buffered Support
🎮Graphics
- 1x D-Sub • 1920x1200@60Hz
- 1x HDMI • 4096x2160@60Hz
- HDMI 2.1 & HDCP 2.3
- Intel HD Graphics Ready
⚡Expansion
- 1x PCIe 4.0 x16 (CPU)
- 1x PCIe 3.0 x1 (Chipset)
- Graphics Card Support
- NVMe SSD Compatible
💿Storage
- 2x M.2 Slots (PCIe 4.0 x4)
- CPU & Chipset Connected
- 4x SATA 6Gb/s ports
- RAID 0/1/5/10 Support

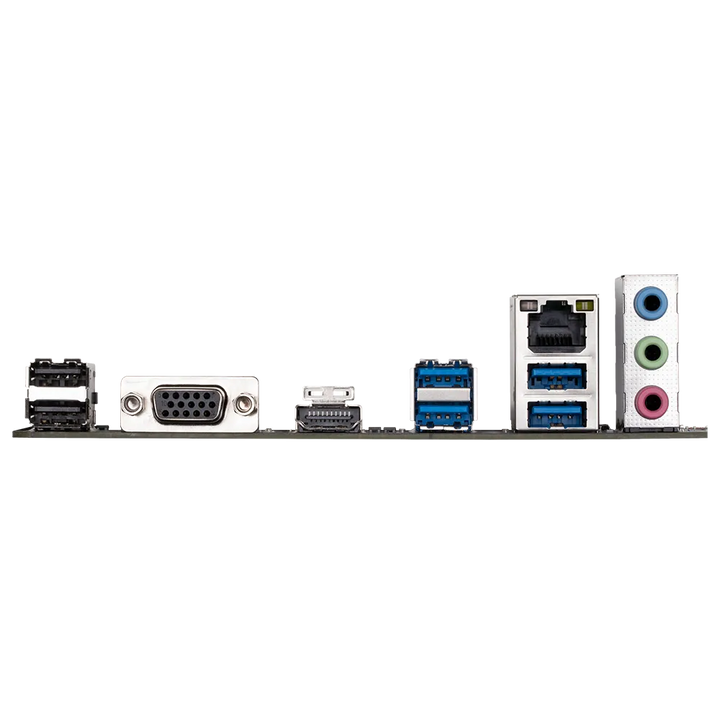

🔌Connectivity
- Realtek GbE LAN
- 6x USB 3.2 Gen 1 Ports
- 6x USB 2.0/1.1 Ports
- Advanced USB Layout
- Internal Headers
🎵Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel Support
- S/PDIF Out Support
- Configurable Audio Jacks
📱Form Factor
- Micro-ATX Design
- 23.0cm x 21.5cm
- Compact & Efficient
- Standard ATX Compatible
Special Features
ASUS 5X Protection III
Enhanced durability and safety features
Aura Sync RGB
Addressable lighting support
Q-Design
Easy installation features
Thermal Solution
Aluminum heatsink design
Armoury Crate
Comprehensive software suite
UEFI BIOS
128MB Flash ROM with EZ Mode

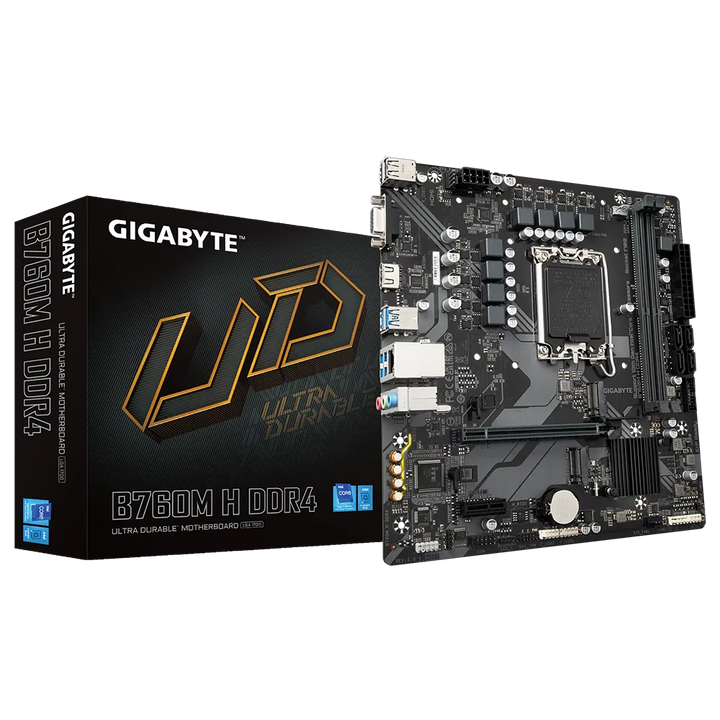

GIGABYTE B760 M-H DDR4
