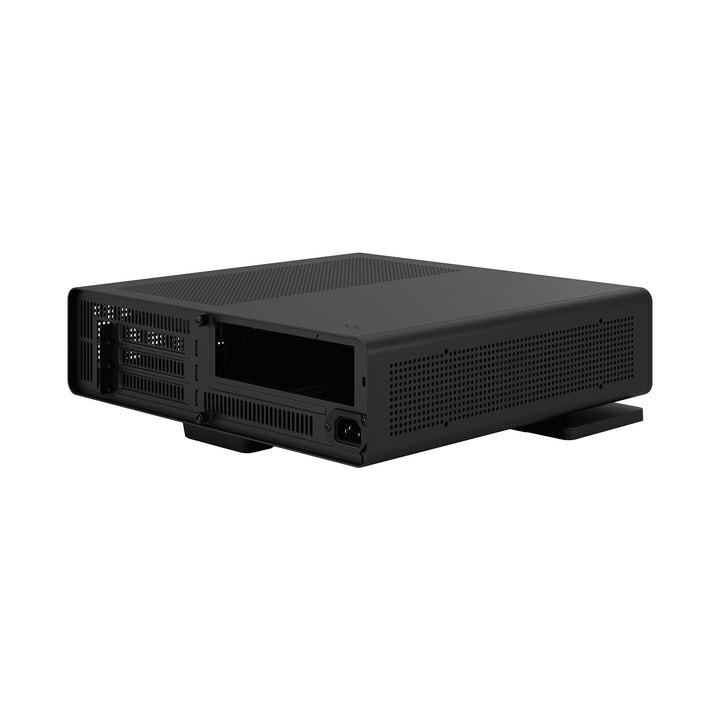

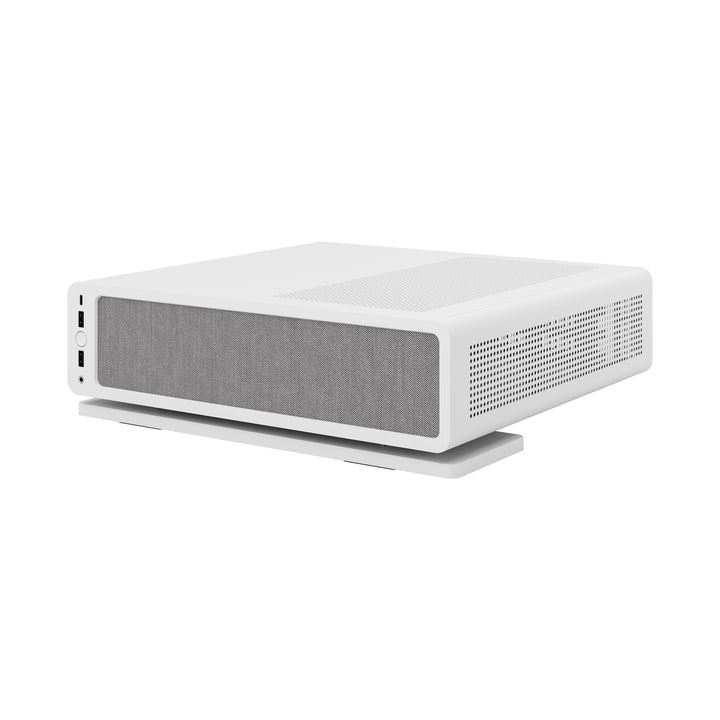

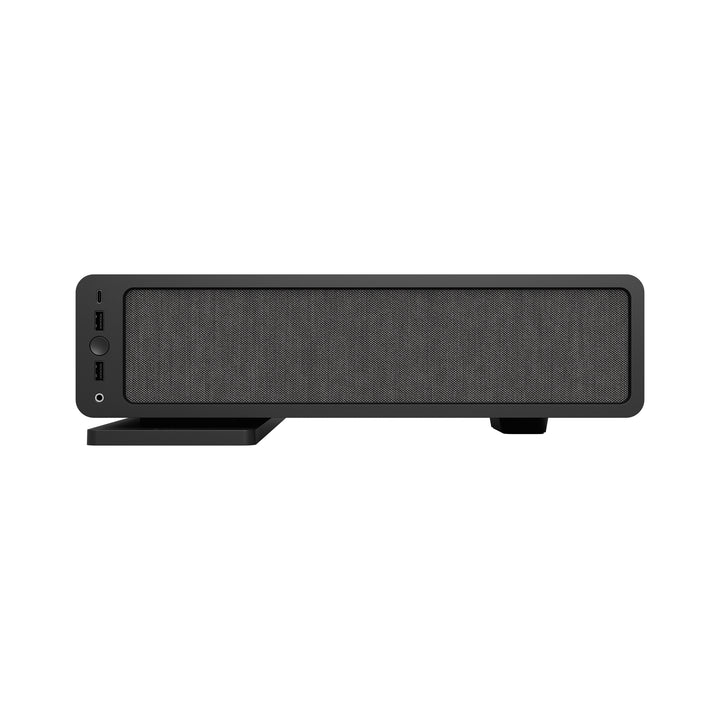

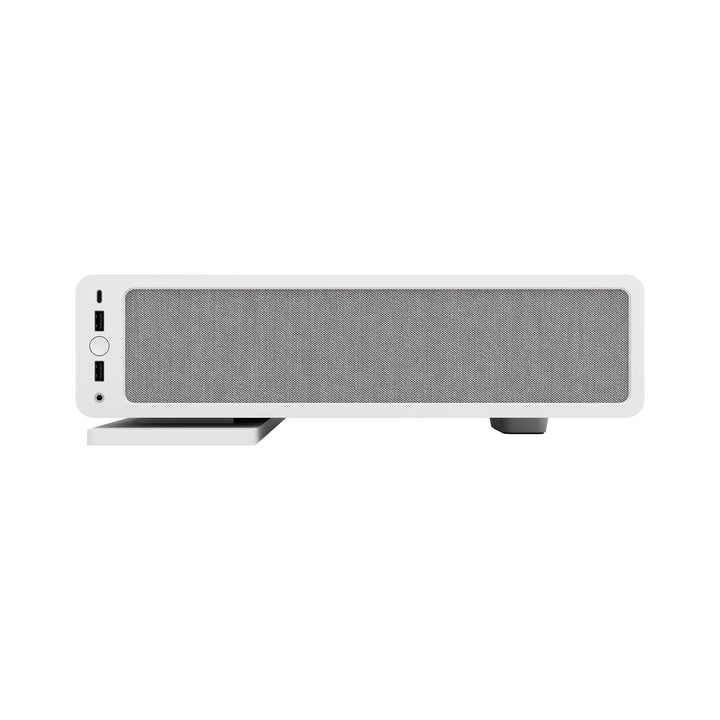

Fractal Design Ridge
Premium Small Form Factor Case | 12.6 Liters of Concentrated Performance
Key Features
- Compact 12.6-liter design with dual orientation capability (vertical or horizontal)
- Premium Mini-ITX enclosure with support for high-performance components
- Accommodates graphics cards up to 335mm long and CPU coolers up to 70mm tall
- Two included 140mm PWM Aspect fans for efficient cooling
- Tool-less side panels with thumbscrew locks for easy access
- Available in black or white finishes with standard or PCIe 4.0 riser options
Black
FD-C-RID1N-01
White
FD-C-RID1N-02
Specifications
Dedicated 2.5" drive mounts
4x included, 4x positions total
Expansion slots
3-slot
Front interface
1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 1x Combo jack – Audio/Microphone
Total fan mounts
2x 120/140 mm and 3x 80 mm
Side fan
2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Compatibility
Motherboard compatibility
Mini ITX
Power supply type
SFX, SFX-L
GPU max length
325 mm with SSD installed. 335 mm without SSD installed.
GPU max height
125 mm with top fan(s) installed, 137 mm without top fans
CPU cooler max height
70 mm
Dimensions
Case dimensions (vertical)
374 x 110 x 395 mm
Case dimensions (horizontal)
360 x 375 x 115 mm
Net weight
4.3 kg
Package dimensions
426 x 167 x 431 mm
Volume
12.6 liter
معلومات إضافية
| Color |
Black Solid, White |
|---|
Fractal Design Ridge
