Fractal Design Ion SFX-L Gold
SFX-L COMPACT
ION SFX-L GOLD
Modular Compact Power Supply
650W
Compact Power
80+
Gold Certified
0RPM
Zero Mode
125
mm Compact
SFX-L Form Factor
Compact 125 x 125 x 63.5mm design delivers full ATX power in a small form factor ideal for mini-ITX builds
80PLUS Gold
Gold certification ensures efficient energy use and reduced heat generation in compact builds

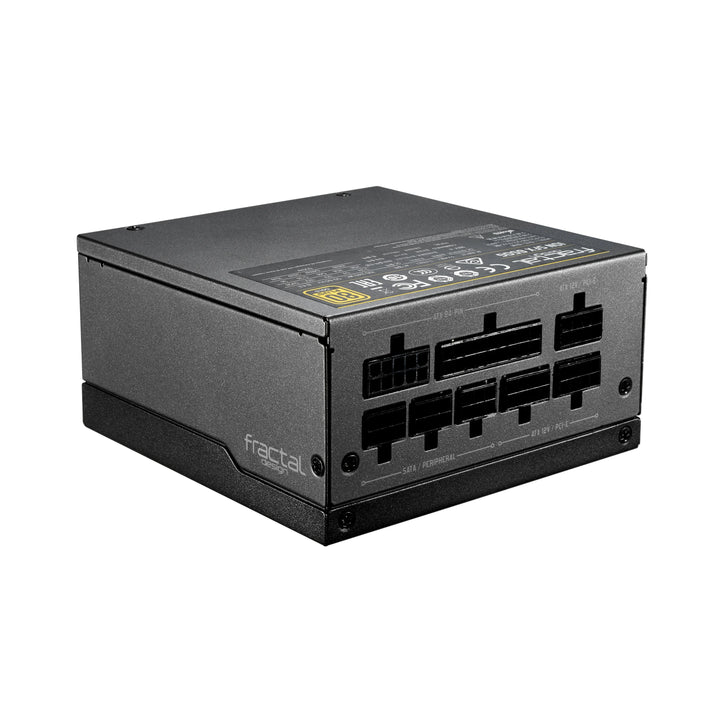

Fully Modular
Complete modular design with UltraFlex™ DC wires for effortless cable routing in tight spaces

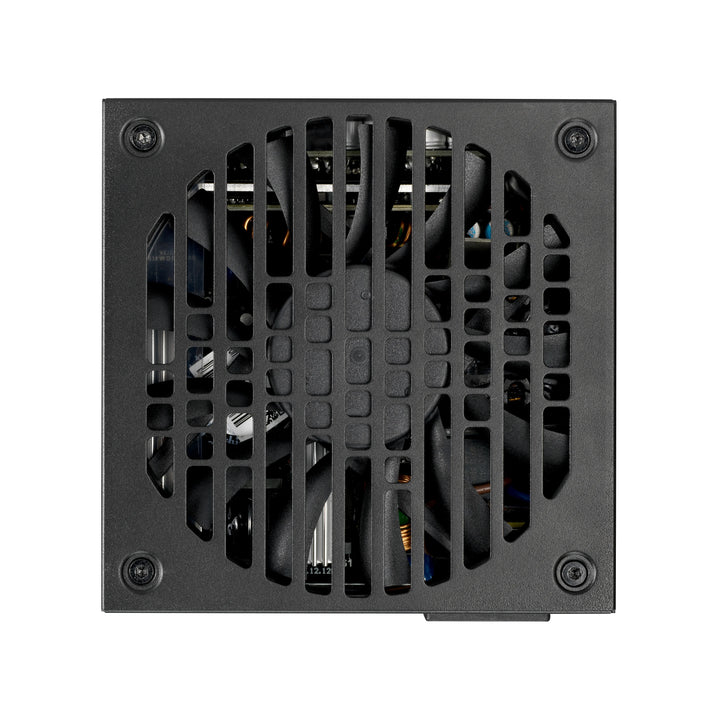

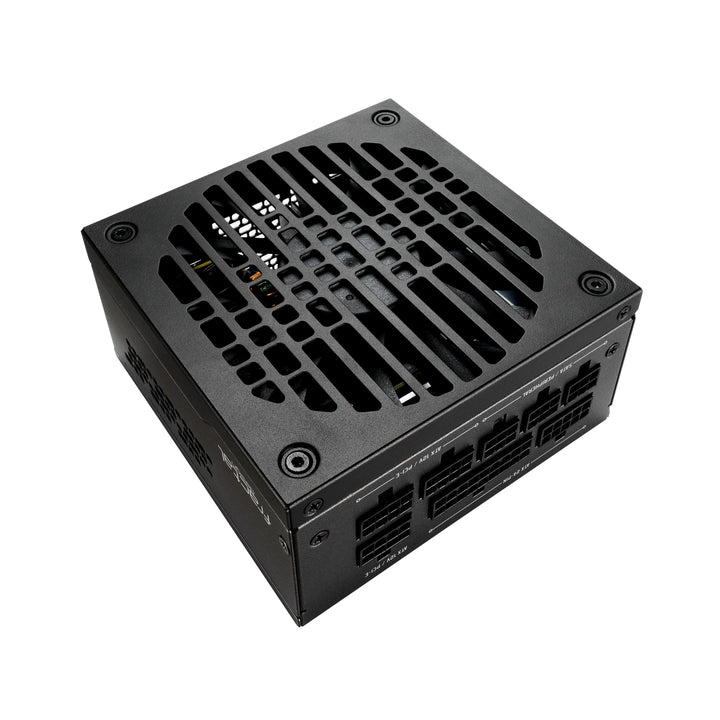

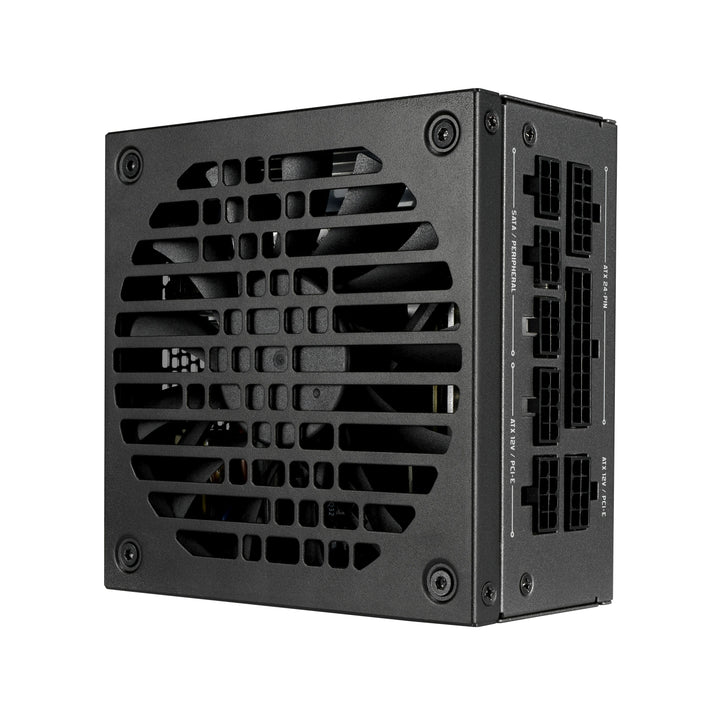

120mm FDB Fan
Large 120mm fan with true long-life FDB bearing and Zero RPM semi-passive operation

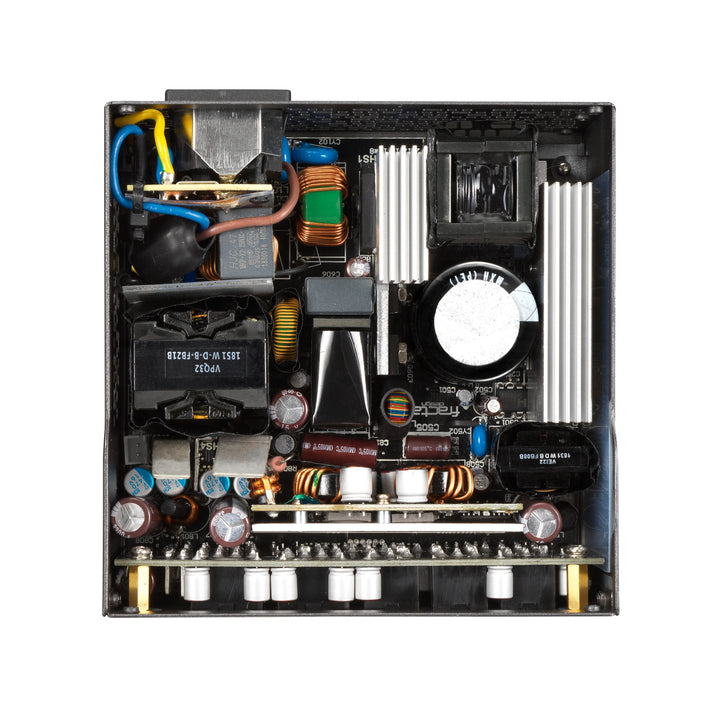

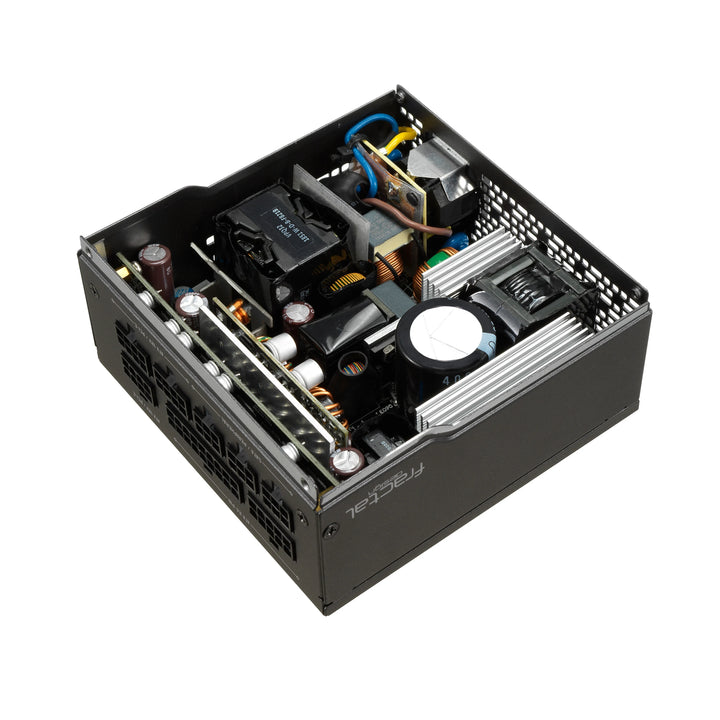

Premium Capacitors
105°C Japanese Polymer capacitors ensure superior output quality and reliability
Full Protection
Comprehensive protection suite with OVP, UVP, OPP, SCP, OCP, and OTP for system safety
Compact Design
SFX-L form factor fits in compact cases while delivering full 650W power capacity

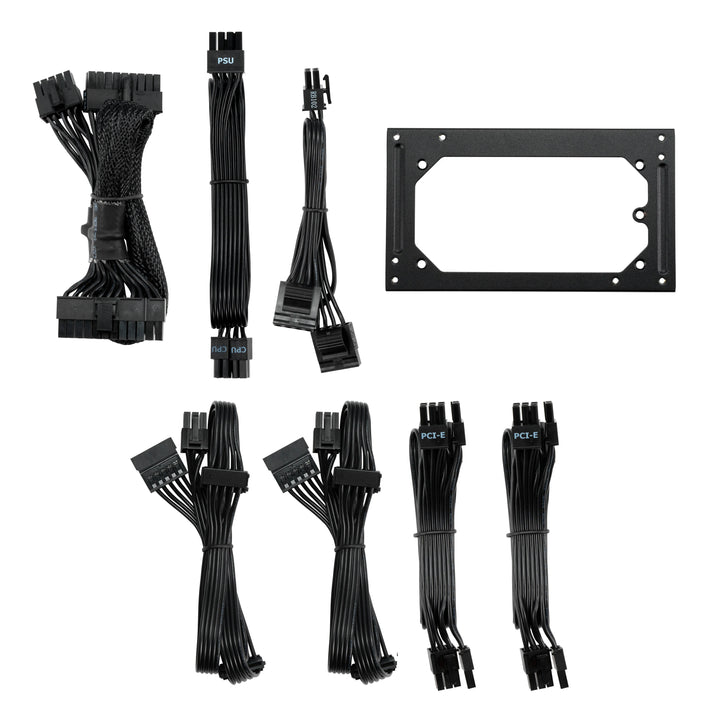

UltraFlex™ Cable Technology
24-pin ATX
Braided sleeve UltraFlex™
Modular Cables
Flat UltraFlex™ design
Easy Routing
Enhanced flexibility
Compact Builds
Perfect for SFF cases
Technical Specifications

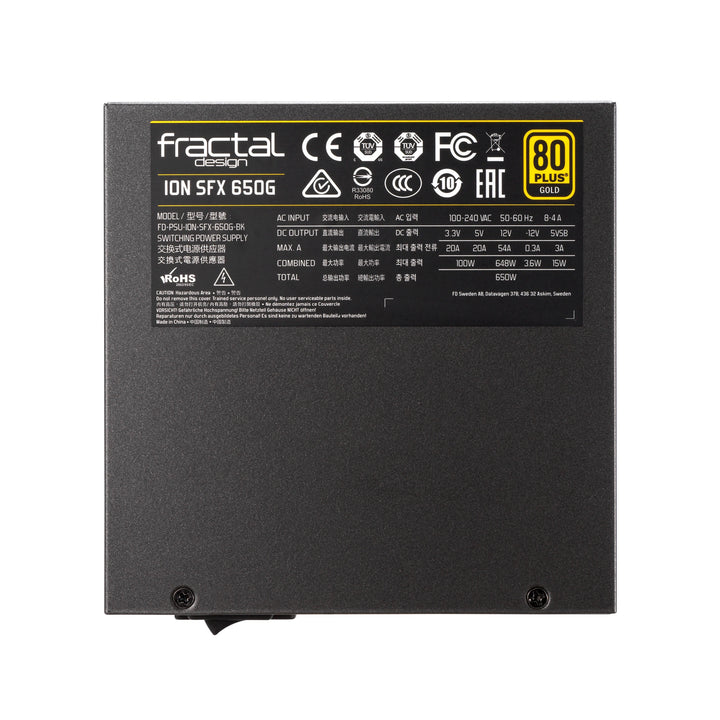

Power Output
Total Power
650W
+12V Rail
54A
+3.3V Rail
20A
+5V Rail
20A
3.3V+5V
100W Combined
Efficiency
80PLUS Gold

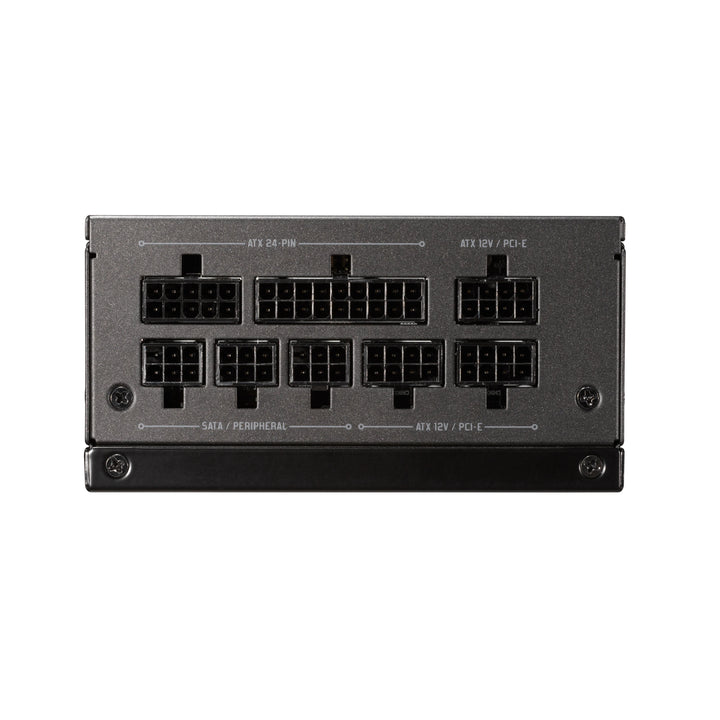

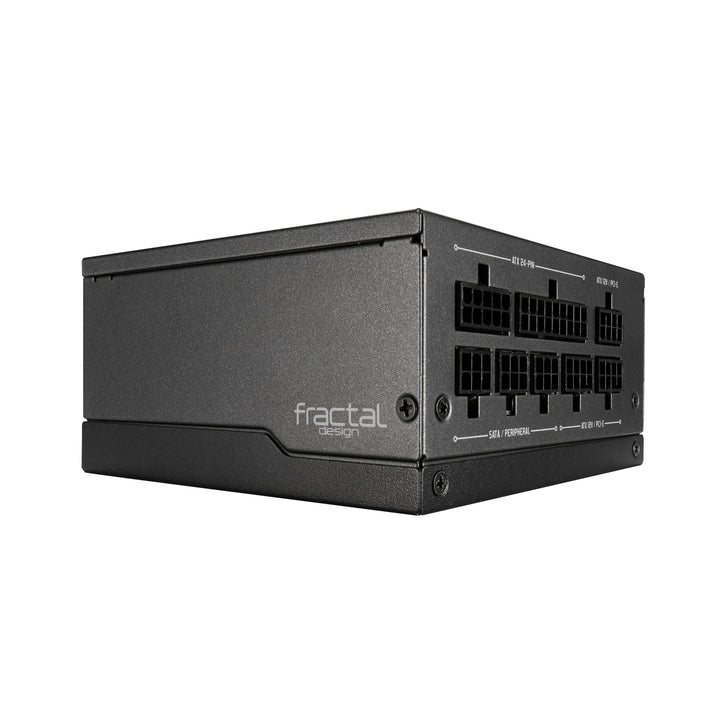

Connectors
ATX 24-pin
1x (350mm)
EPS/ATX12V
1x (400mm)
PCIe 6+2
4x (400+100mm)
SATA
8x (multiple configs)
Peripheral
2x (300+200mm)
Compact Design
Form Factor
SFX-L
Dimensions
125 x 125 x 63.5mm
Weight
1.15kg
Modular
Fully Modular
Cables
UltraFlex™
Color
Black/Gunmetal
Cooling & Operation
Fan
120mm FDB Bearing
Zero RPM
Yes (Semi-passive)
Max Temp
40°C Full / 50°C 80%
Capacitors
105°C Japanese Polymer
Life Span
100,000 Hours
Electrical
Input
100-240V AC, 50-60Hz
12V Rails
Single Rail
Protection
OVP, UVP, OPP, SCP, OCP, OTP
Efficiency
ErP 2013, C6/C7
Certifications
CE, FCC, TUV, RoHS
Warranty
10 Years
Package Contents
PSU
Ion SFX-L with protective bag
Cables
Modular kit in storage bag
Bracket
SFX-to-ATX mounting bracket
Accessories
Screws,
Fractal DESIGN Ion SFX-L 650W Gold
LE 6,500.00
