0 total, 0 included

4 total, 4 included (2 on motherboard wall)

0 total, 0 included

3

ITX

SFX / SFX-L

1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio

4 x 120 or 2 x 120 and 2 x 140 mm (2x120 mm Aspect PWM fans included)

2 x 120 mm or 2 x 140

2 x 120 mm

Bottom

Up to 315 x 140 mm with total thickness ≤ 52 mm
Up to 300 x 140 mm with total thickness ≤ 58 mm

326 mm

137 mm

48-63 mm (depending on motherboard wall position)

55-70 mm (depending on motherboard wall position)

No

Yes (2 included)

PCI-e Blanks

Aluminum

Yes

If you wish to use the Era 2 PCIe 4.0 riser cable together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability.

366 x 165 x 314 mm

365 x 165 x 314 mm

4,64 kg

455 x 250 x 408 mm

5.74 kg

Case, Accessory Box, Designers Letter, Quick Start Note

SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4

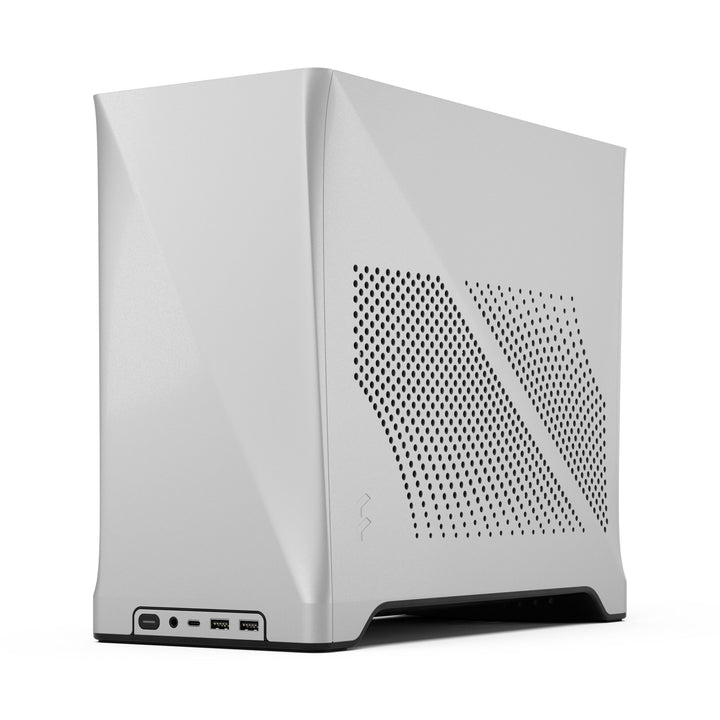

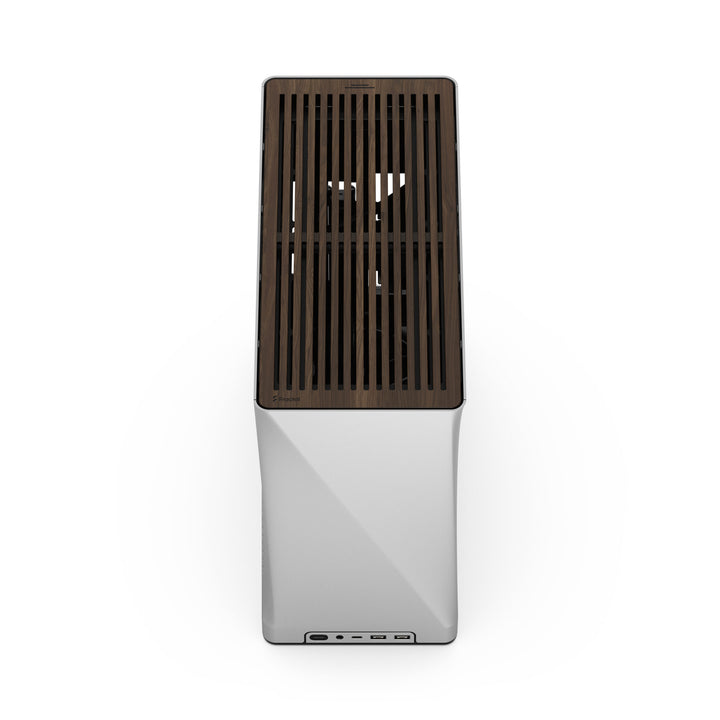

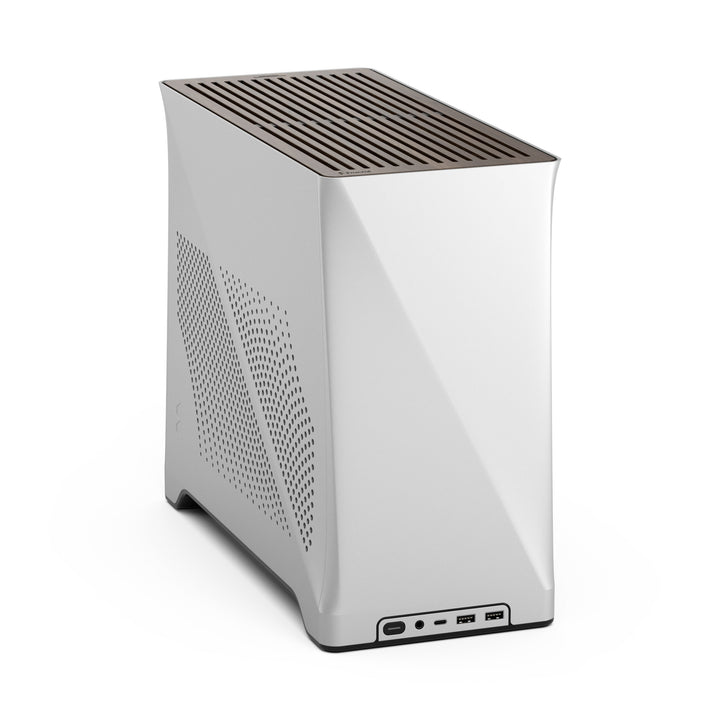

Era 2 Silver: FD-C-ERA2N-01

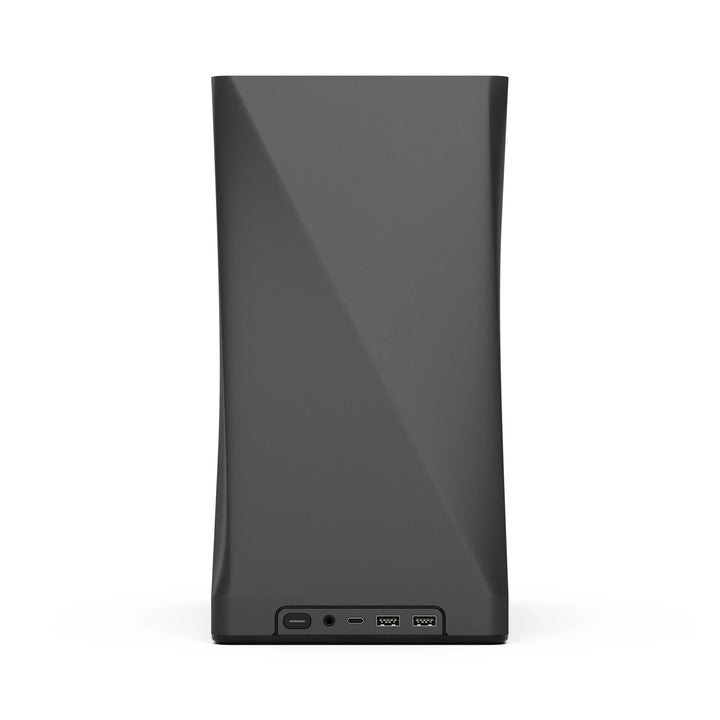

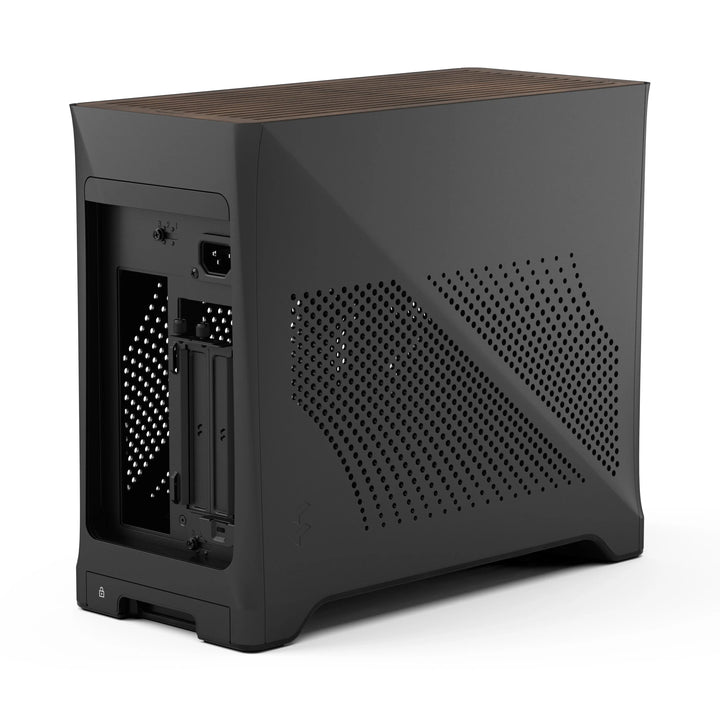

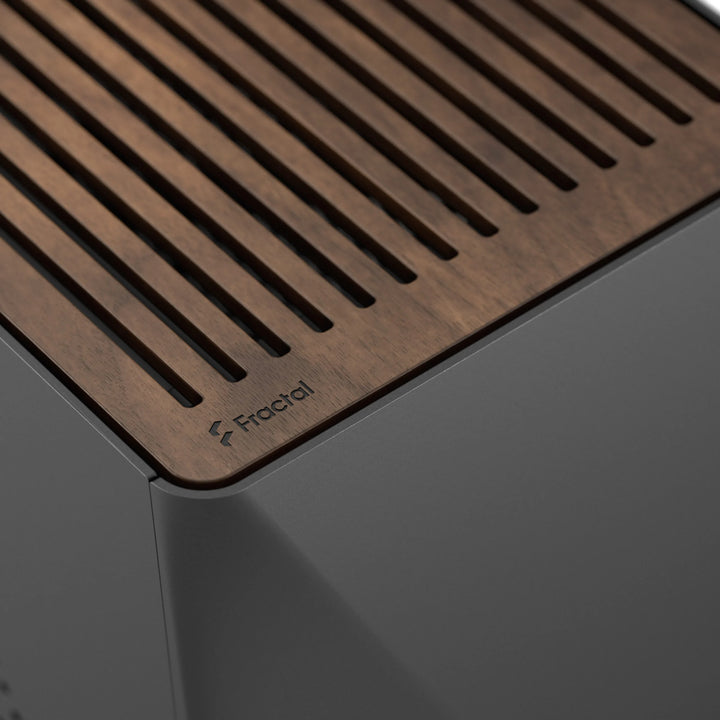

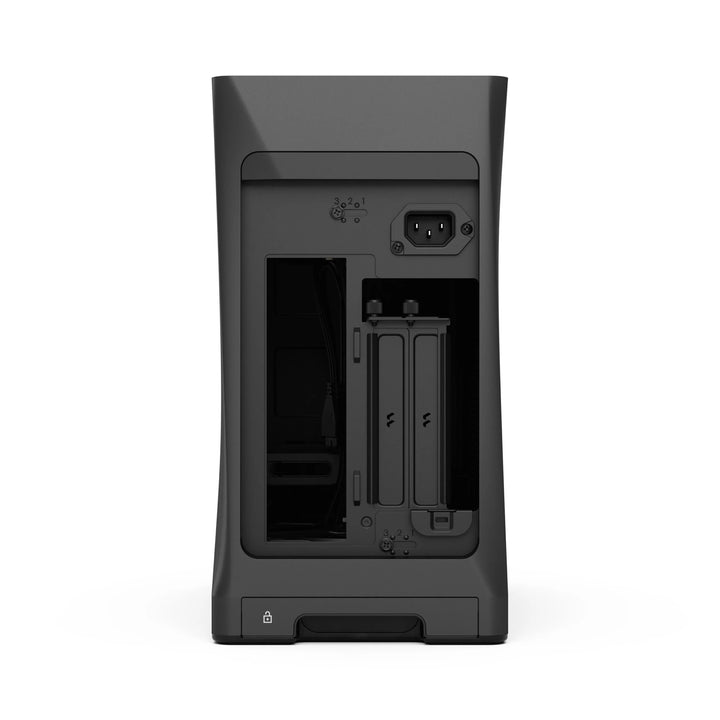

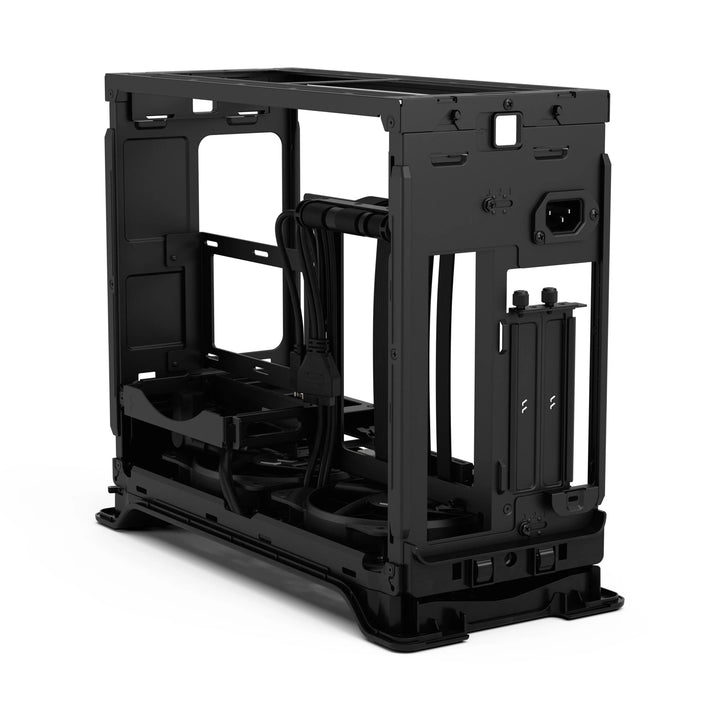

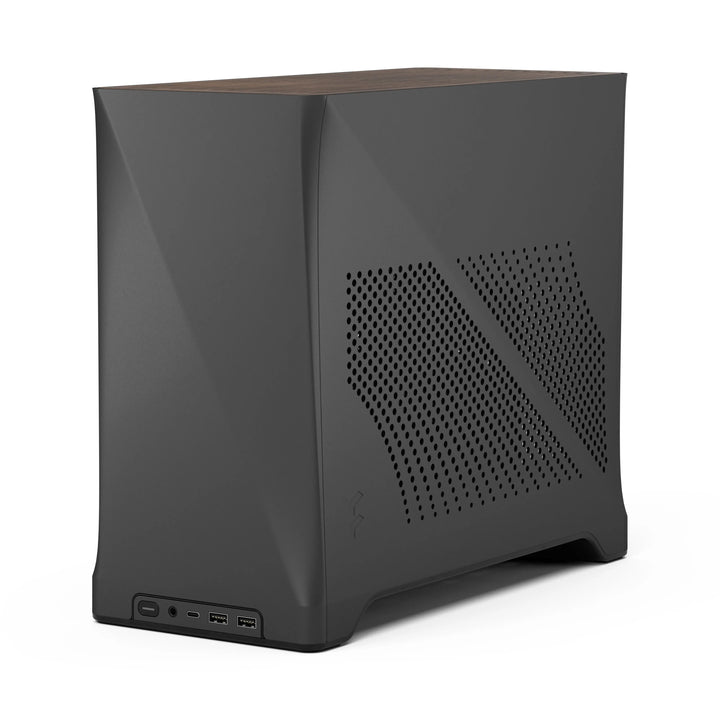

Era 2 Charcoal Gray: FD-C-ERA2N-02

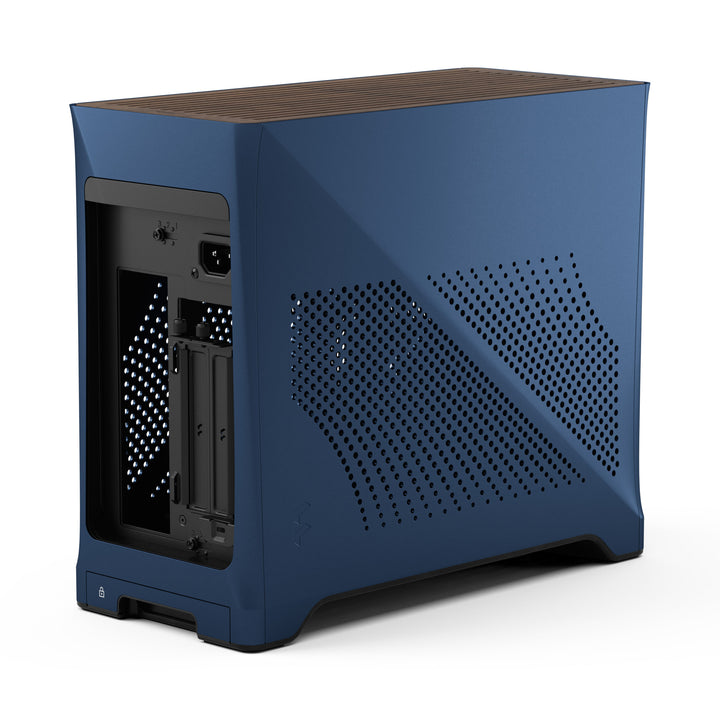

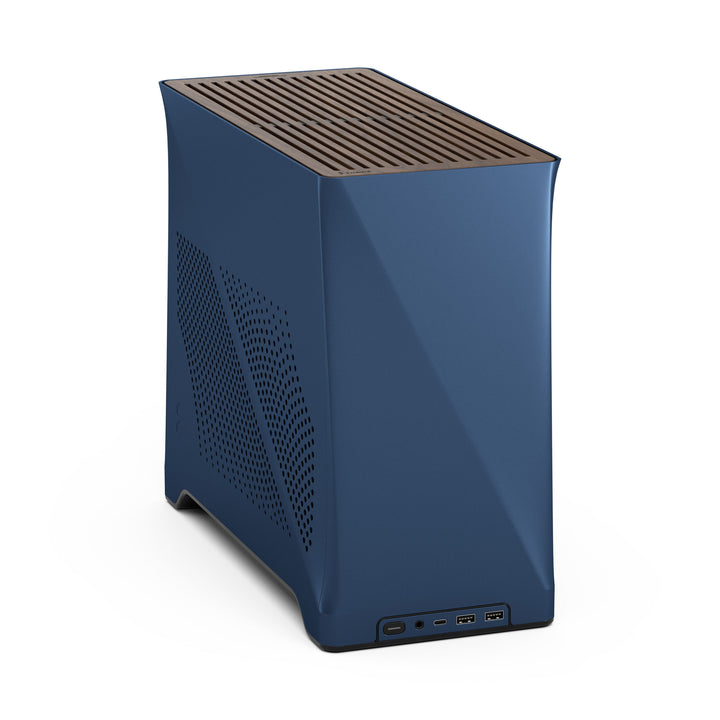

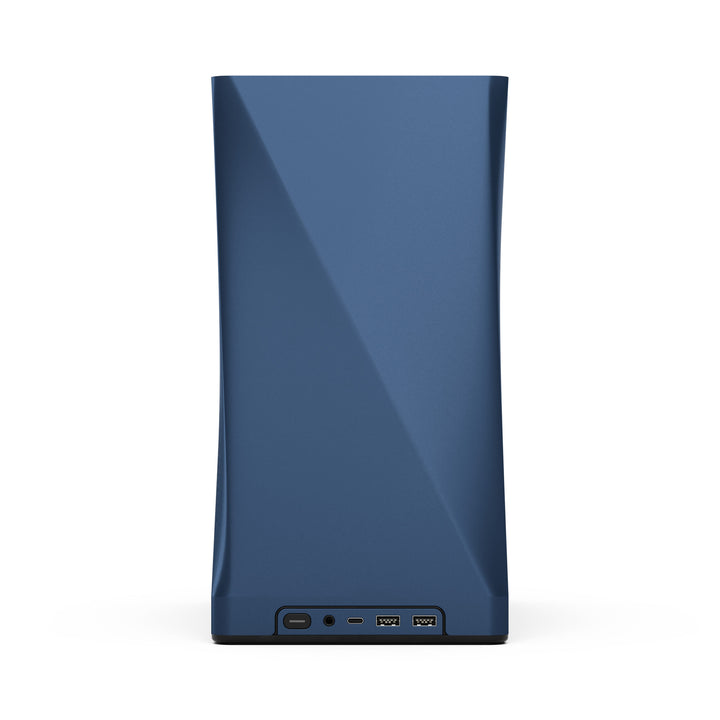

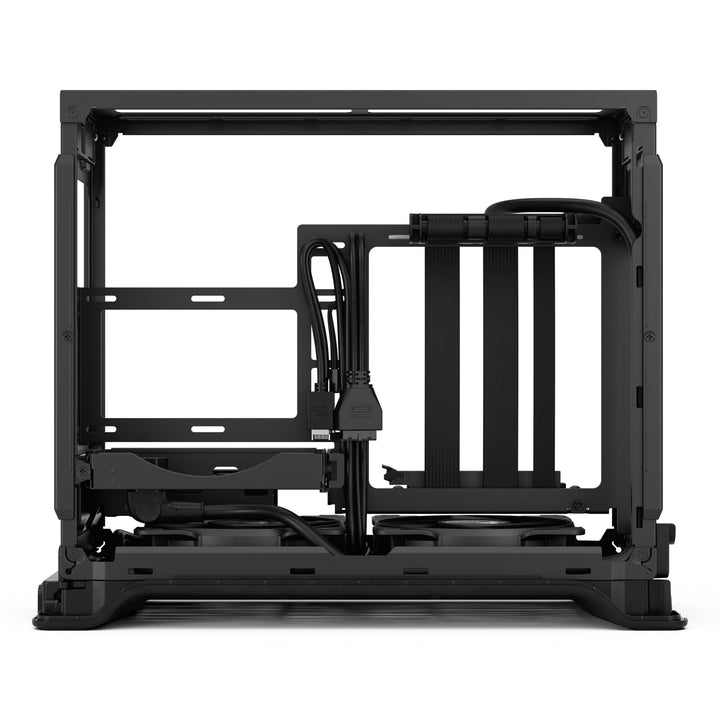

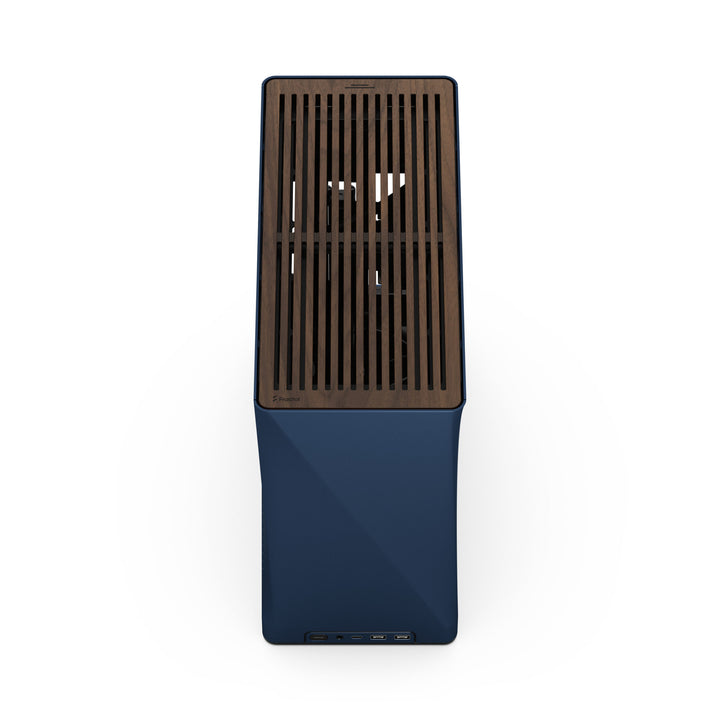

Era 2 Midnight Blue: FD-C-ERA2N-03

Era 2 Silver: 7340172705826
Era 2 Charcoal Gray: 7340172705833
Era 2 Midnight Blue: 7340172705840

Era 2 Silver: 843276105822
Era 2 Charcoal Gray: 843276105839
Era 2 Midnight Blue: 843276105846

Era 2 Silver: 843276105822
Era 2 Charcoal Gray: 843276105839
Era 2 Midnight Blue: 843276105846
