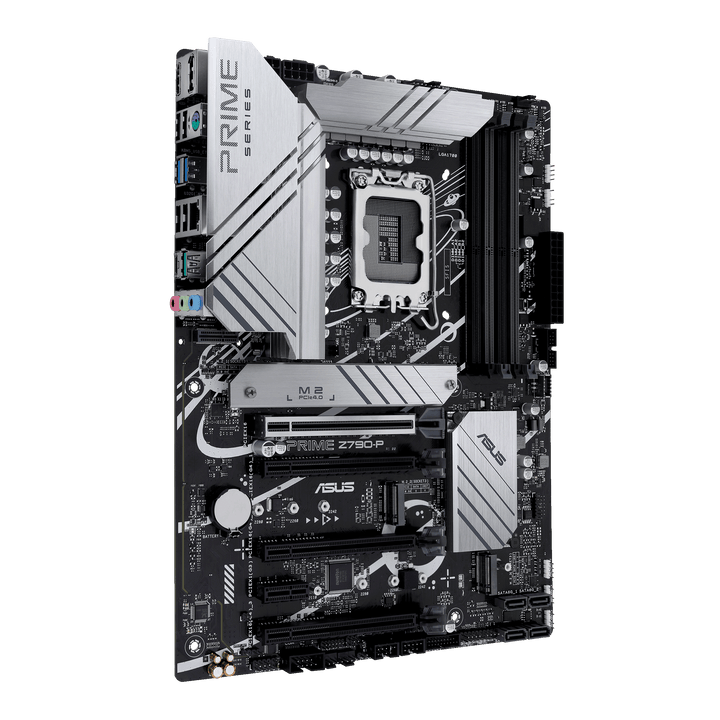

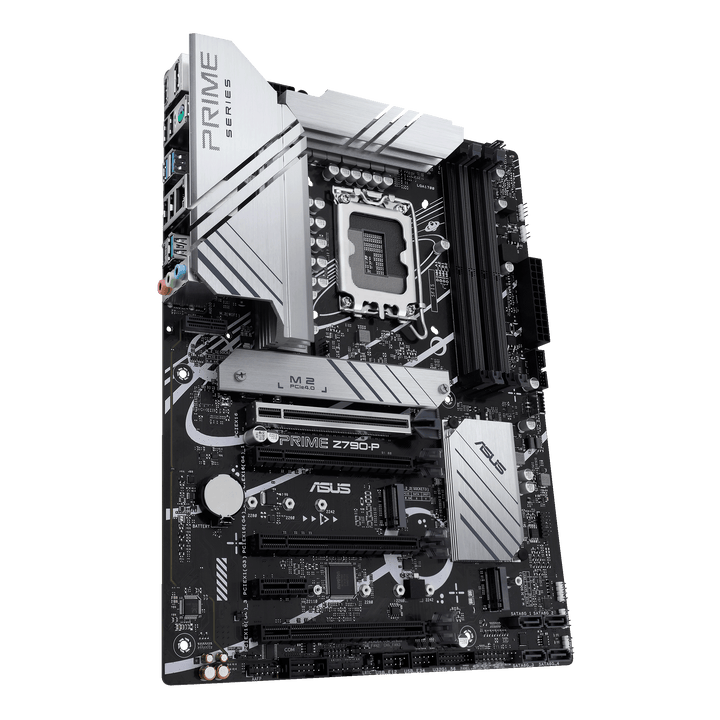

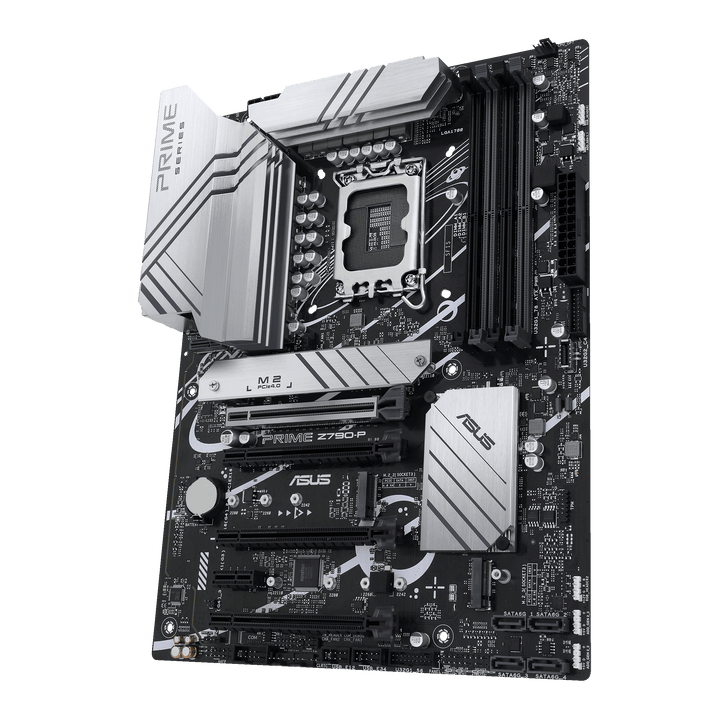

ASUS PRIME Z790-P
Intel® Z790 Chipset Motherboard
Designed for: Intel® Core™ 14th, 13th, & 12th Gen Processors
Chipset: Intel® Z790
Form Factor: ATX
PROCESSOR SPECIFICATIONS
| Socket | Intel® Socket LGA1700 |
| Compatible CPUs | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* |
| Special Features | Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
CHIPSET
| Chipset | Z790 Intel® Z790 Chipset |
MEMORY
| Memory Slots | 4 DIMM Slots |
| Maximum Capacity | 192GB |
| Memory Type | DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Architecture | Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Notes | * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
GRAPHICS
| Display Outputs | 1 x DisplayPort** 1 x HDMI® port*** |
| Graphics Notes | *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
EXPANSION SLOTS
| Intel® Core™ Processors | PCIe 5.0 1 x PCIe 5.0 x16 slot |
| Intel® Z790 Chipset | 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Notes | * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
STORAGE
| Total Storage | 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Via 14th/13th/12th Gen Intel® Core™ Processors | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| Via Intel® Z790 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| RAID Support | * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
NETWORKING
| Ethernet | 2.5Gb 1 x Realtek 2.5Gb Ethernet |
Technical Specifications
Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

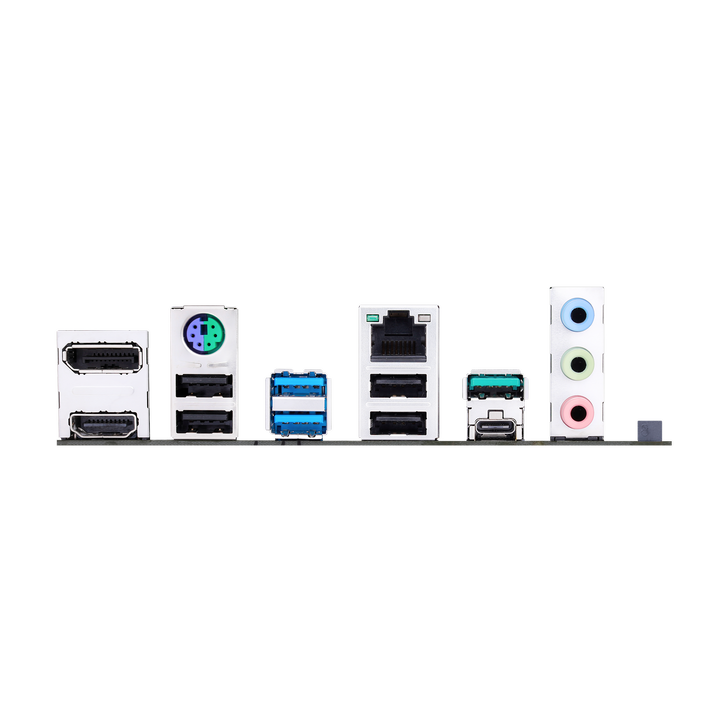

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
ASUS Prime Z790-P DDR5
LE 11,500.00
