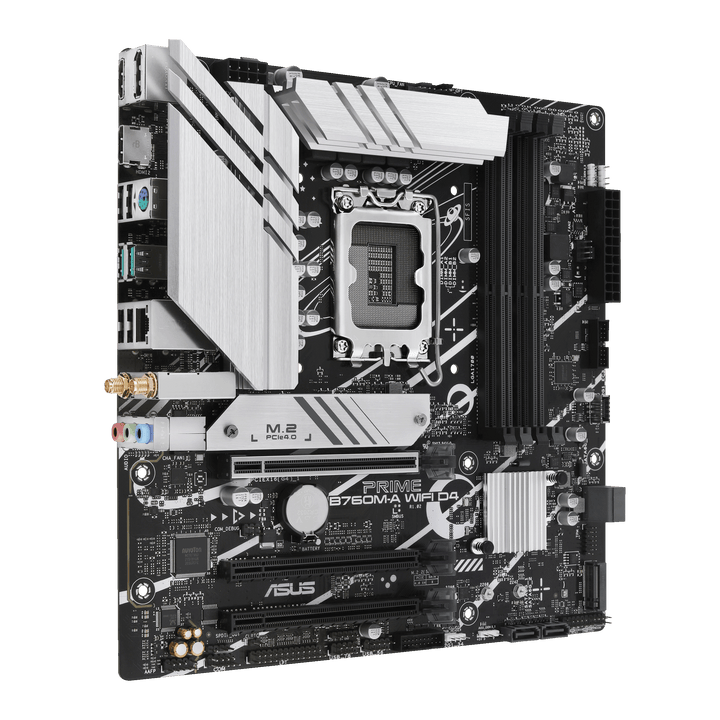

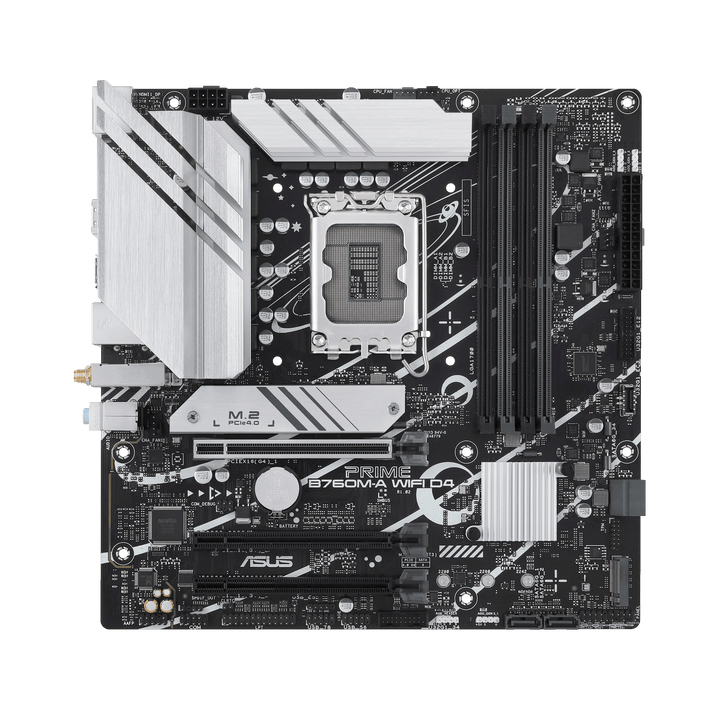

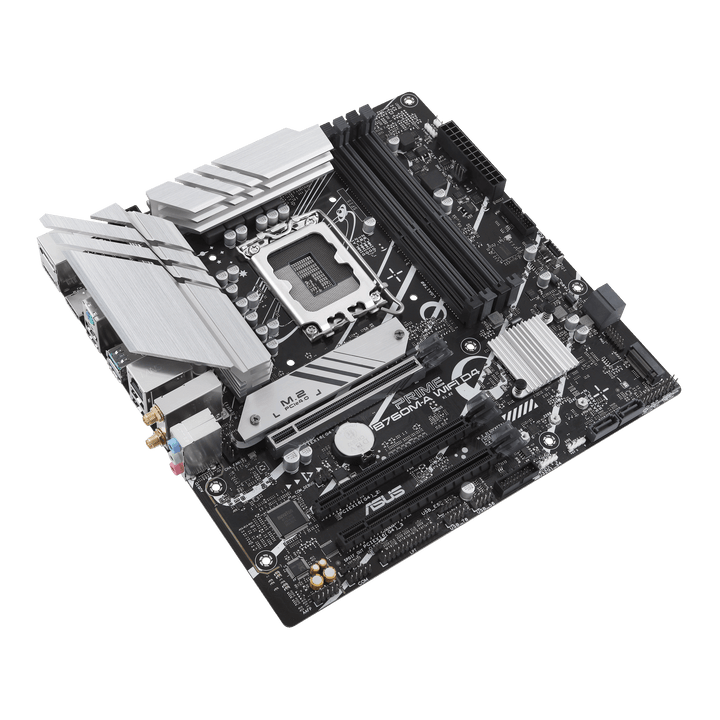

ASUS PRIME B760M-A WIFI D4
PRIME B760M-A WIFI D4
Advanced micro-ATX motherboard for Intel 12th, 13th & 14th Gen processors with DDR4 support, Wi-Fi 6, and comprehensive connectivity
Explore SpecificationsProcessor Support
Intel 12th, 13th & 14th Gen
LGA1700 socket with Intel B760 chipset
Core, Pentium Gold & Celeron support
Turbo Boost Technology 2.0 & Max 3.0
LGA1700 socket with Intel B760 chipset
Core, Pentium Gold & Celeron support
Turbo Boost Technology 2.0 & Max 3.0
DDR4 Memory
4 DIMM slots, up to 128GB DDR4
Speeds up to 5333 MT/s (OC)
Dual channel architecture
Intel XMP & OptiMem II support
Speeds up to 5333 MT/s (OC)
Dual channel architecture
Intel XMP & OptiMem II support
Storage
2 M.2 slots + 4 SATA ports
Both M.2 slots: PCIe 4.0 x4
SATA 6Gb/s with RAID support
Intel Rapid Storage Technology
Both M.2 slots: PCIe 4.0 x4
SATA 6Gb/s with RAID support
Intel Rapid Storage Technology
Expansion
3 PCIe 4.0 slots total
1x PCIe 4.0 x16 (CPU lanes)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
1x PCIe 4.0 x16 (CPU lanes)
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x16 (x1 mode)
Connectivity
Wi-Fi 6 + 2.5Gb Ethernet
802.11ax with 2.4/5GHz support
Bluetooth 5.2
Realtek 2.5Gb LAN
802.11ax with 2.4/5GHz support
Bluetooth 5.2
Realtek 2.5Gb LAN

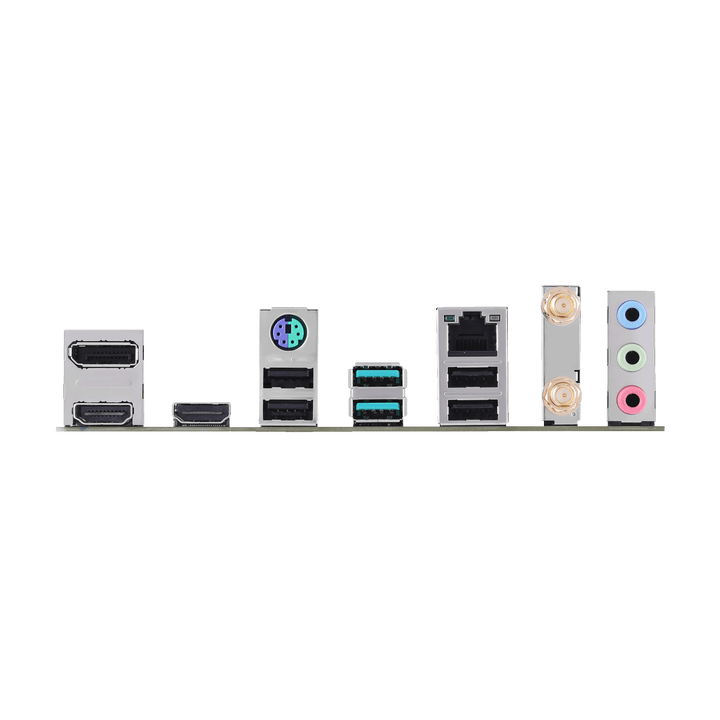

USB Ports
16 total USB ports
2x USB 3.2 Gen 2 (rear)
1x USB-C 3.2 Gen 1 (front)
Multiple USB 3.2 & 2.0 ports
2x USB 3.2 Gen 2 (rear)
1x USB-C 3.2 Gen 1 (front)
Multiple USB 3.2 & 2.0 ports
Display
Triple display support
1x DisplayPort 1.4 (4K@60Hz)
2x HDMI 2.1 (4K@60Hz)
Integrated graphics ready
1x DisplayPort 1.4 (4K@60Hz)
2x HDMI 2.1 (4K@60Hz)
Integrated graphics ready
Audio
Realtek 7.1 Surround Sound
24-bit/192kHz playback
Premium audio capacitors
Dedicated audio PCB layers
24-bit/192kHz playback
Premium audio capacitors
Dedicated audio PCB layers
ASUS 5X Protection III
Advanced protection and quality features for reliable performance
DIGI+ VRM
Digital voltage regulation for stable power delivery
LANGuard
Advanced signal-coupling technology and premium surface-mounted capacitors
SafeSlot Core+
Reinforced PCIe slots with stronger retention and shearing resistance
Overvoltage Protection
Monitors and prevents voltage spikes to protect components
Q-Design Features
Q-DIMM, Q-LED Core, Q-Slot for easier building
Thermal Solutions
M.2 heatsink and VRM heatsink design for optimal cooling
Aura Sync RGB
Customizable lighting with addressable headers
Armoury Crate
Unified software for system monitoring and control
Protection Technologies
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless Steel Back I/O
