Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Configuration: 2 x DIMM slots, Max. 64GB, DDR4

Supported Speeds: 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Features:

• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

Display Output: 1 x HDMI™ port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot

Intel® B760 Chipset: 2 x PCIe 4.0 x1 slots

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset:

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Rear USB (Total 8 ports):

• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)*

Front USB (Total 6 ports):

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supported Features:

• Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features:

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

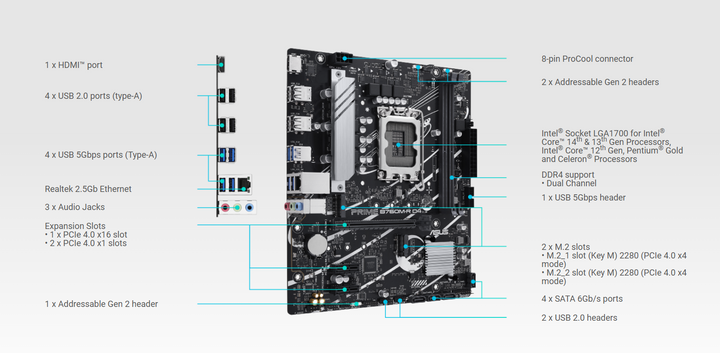

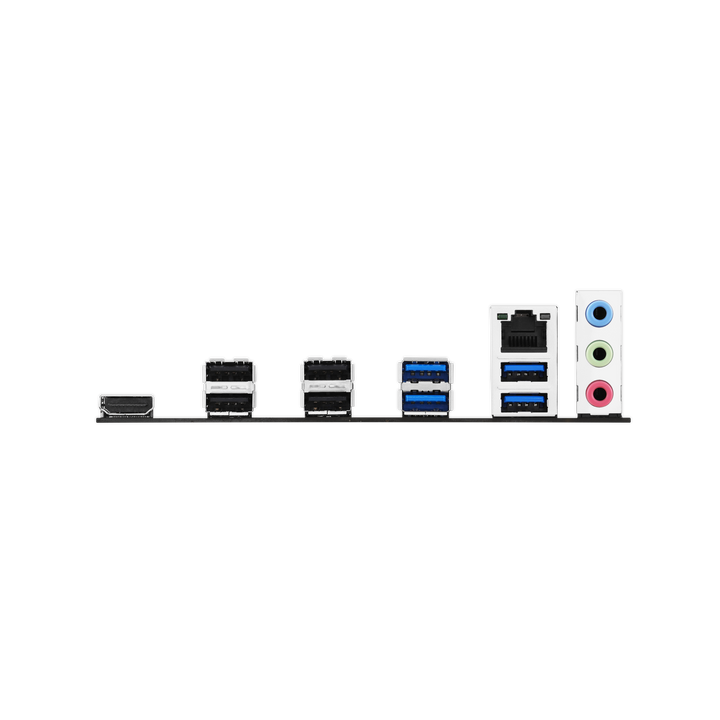

• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Fan and Cooling Related:

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Power Related:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage Related:

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB:

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous:

• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front panel audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

ASUS 5X PROTECTION III:

• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot Core
• Stainless-steel back I/O

ASUS Q-Design:

• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS EZ DIY:

• ProCool

ASUS Thermal Solution:

• VRM heatsink design

Aura Sync:

• Addressable Gen 2 headers

ASUS Exclusive Software:

• Armoury Crate: Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancelation
• AI Suite 3: DIGI+ VRM, PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)

UEFI BIOS:

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

WOL by PME, PXE

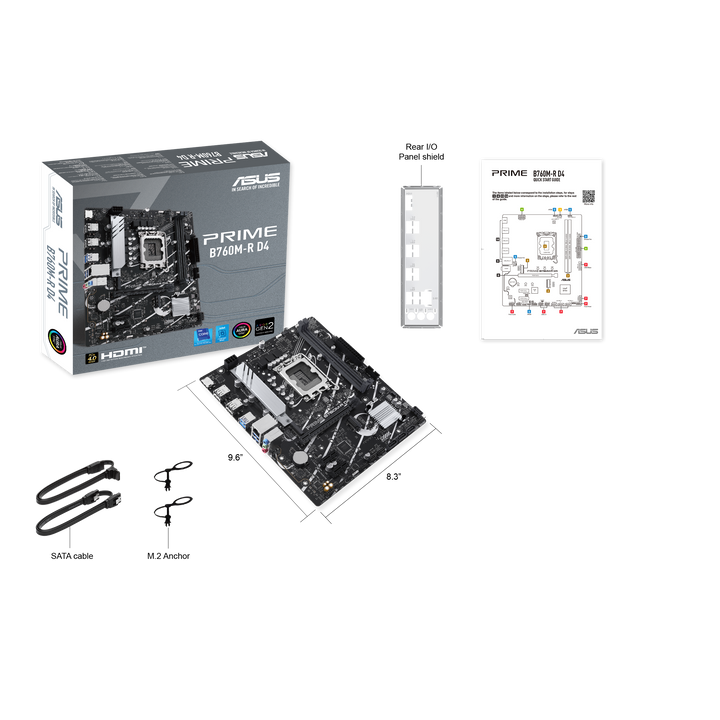

Cables:

• 2 x SATA 6Gb/s cables

Miscellaneous:

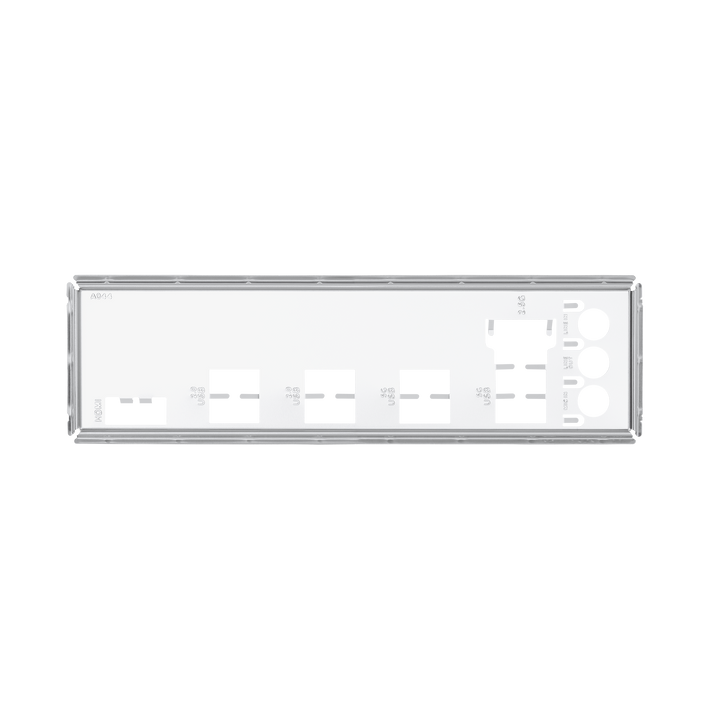

• 1 x I/O shield
• 2 x M.2 anchors

Documentation:

• 1 x Quick start guide

micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
