Next-Gen Motherboard

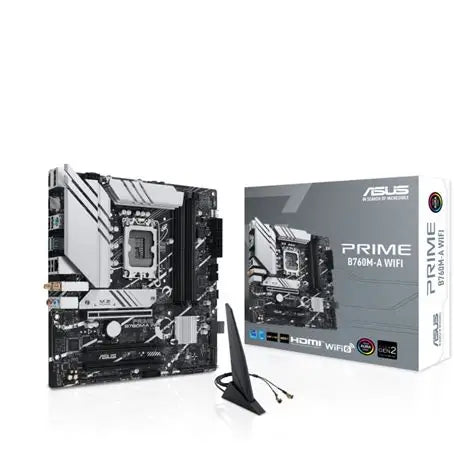

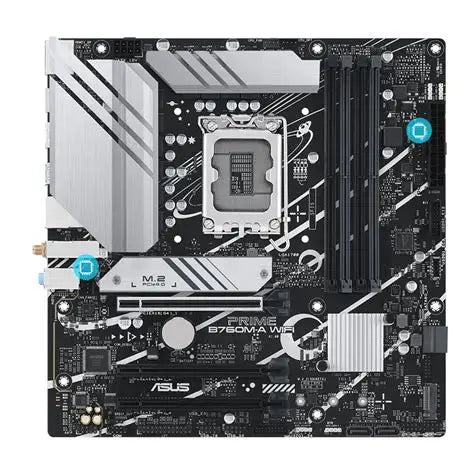

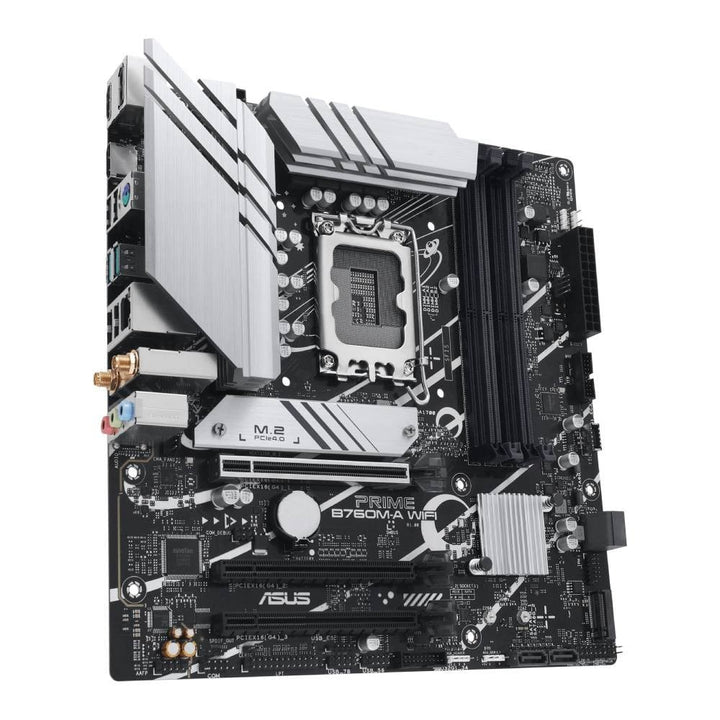

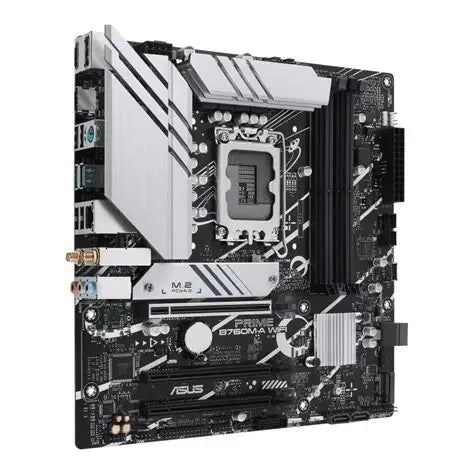

PRIME B760M-A WIFI
Engineered for performance, built for the future.
Experience the next level of computing power.
CPU & Chipset
Intel® Socket LGA1700 supporting the latest Intel® Core™ 14th, 13th & 12th Gen processors, along with Pentium® Gold and Celeron® processors. Built on the robust Intel® B760 Chipset for optimal performance and reliability.
Turbo Boost 2.0 Turbo Boost Max 3.0 LGA1700
Memory
4 DIMM slots supporting up to 192GB DDR5
Speed: Up to 7200MHz+ (OC)
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II Technology
Speed: Up to 7200MHz+ (OC)
• Dual Channel Architecture
• Intel® XMP Support
• OptiMem II Technology
Storage
2x M.2 PCIe 4.0 slots
4x SATA 6Gb/s ports
Support for 2242/2260/2280 form factors with M.2 heatsinks included.
4x SATA 6Gb/s ports
Support for 2242/2260/2280 form factors with M.2 heatsinks included.
Connectivity
Wi-Fi 6 (802.11ax)
Bluetooth 5.2
2.5Gb Ethernet
2x2 antenna design with dual-band support (2.4/5GHz).
Bluetooth 5.2
2.5Gb Ethernet
2x2 antenna design with dual-band support (2.4/5GHz).

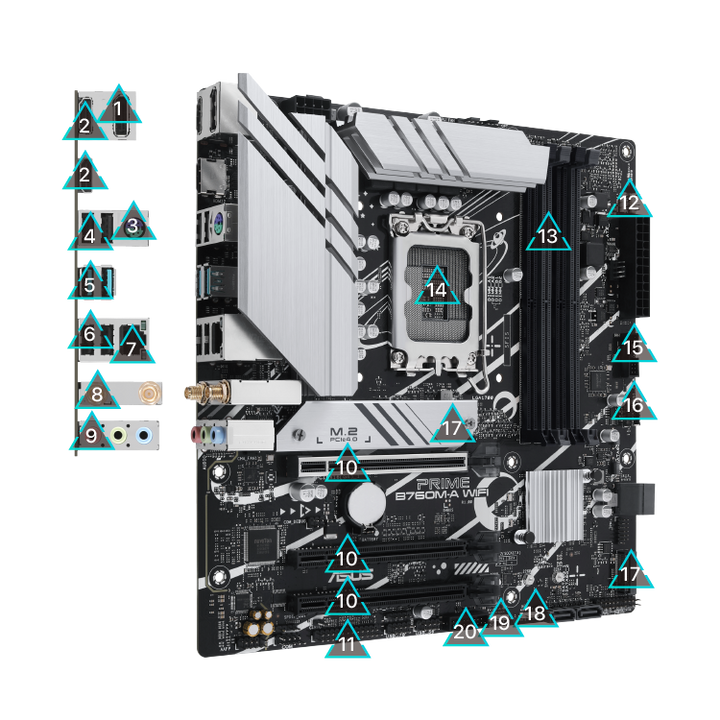

I/O Ports
USB Ports: 6 rear + 10 front via headers
Display: 1x DisplayPort + 2x HDMI 2.1
Audio: Realtek 7.1 Surround Sound
Including USB 3.2 Gen 2, USB-C, and legacy PS/2 support.
Display: 1x DisplayPort + 2x HDMI 2.1
Audio: Realtek 7.1 Surround Sound
Including USB 3.2 Gen 2, USB-C, and legacy PS/2 support.
Advanced Features
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot for easier installation
Thermal Solution: M.2 heatsinks, VRM heatsink design, optimized airflow
ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot for easier installation
Thermal Solution: M.2 heatsinks, VRM heatsink design, optimized airflow
Aura Sync RGB AI Suite 3 Fan Xpert 2+ UEFI BIOS
Specifications
Form Factor: Micro-ATX
Dimensions: 24.4 x 24.4 cm
BIOS: 128MB UEFI AMI
OS Support: Windows 11/10
Perfect for compact builds without compromising performance.
Dimensions: 24.4 x 24.4 cm
BIOS: 128MB UEFI AMI
OS Support: Windows 11/10
Perfect for compact builds without compromising performance.
Why Choose PRIME B760M-A WIFI?
This motherboard represents the perfect balance of performance, features, and value. Whether you're building a gaming rig, productivity workstation, or general-purpose computer, the B760M-A WIFI delivers enterprise-grade reliability with enthusiast-level features. The micro-ATX form factor makes it ideal for compact builds while maintaining full compatibility with the latest Intel processors and DDR5 memory technology.
↑
ASUS B760 M Prime A WIFI DDR5
LE 7,500.00
