Description
RTX 5090
Ultimate Gaming Flagship
RTX 5090
GAMING TRIO OC
The most powerful gaming graphics card ever created. Featuring 32GB GDDR7 memory, 21,760 CUDA cores, and revolutionary RTX architecture for unmatched 8K gaming performance.
21,760 CUDA Cores
32GB GDDR7 Memory
2497 MHz Boost
MSI GAMING TRIO
Revolutionary Performance
Next-generation gaming experiences powered by cutting-edge technology
8K Gaming Ready
Experience games at unprecedented 8K resolution with smooth framerates and ultra-high detail settings
PCIe 5.0 Interface
Next-generation PCIe 5.0 delivers maximum bandwidth for uncompromised performance
TRIO Thermal Design
Advanced triple-fan cooling system ensures optimal temperatures under extreme loads
DLSS 4 Technology
AI-powered frame generation delivers incredible performance boosts in supported games
Real-Time Ray Tracing
Photorealistic lighting, reflections, and shadows with next-gen RT cores
MSI Center Control
Complete control over performance profiles, lighting, and monitoring
Technical Specifications
🚀 Core Performance
Graphics Processor NVIDIA GeForce RTX 5090
CUDA Cores 21,760 Units
Boost Clock 2482 MHz (Gaming Mode)
Extreme Performance 2497 MHz (MSI Center)
Interface PCI Express Gen 5
💾 Memory Specifications
Memory Size 32GB GDDR7
Memory Speed 28 Gbps
Memory Bus 512-bit
Memory Bandwidth 1.8 TB/s
🖥️ Display & Output

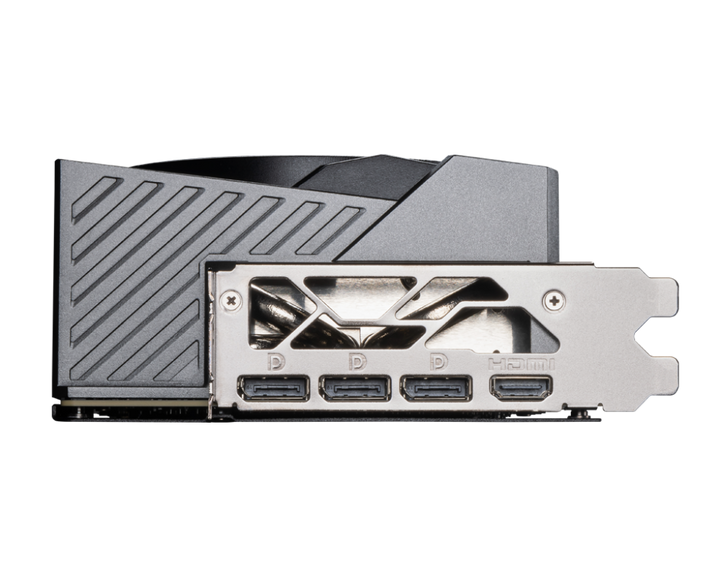

DisplayPort 3x DisplayPort 2.1b
HDMI 1x HDMI 2.1b
Max Resolution 8K (7680×4320)
HDMI Support 4K 480Hz | 8K 120Hz with DSC
Maximum Displays 4
G-SYNC Support Yes
⚡ Power & Cooling
Power Consumption 575W
Power Connectors 1x 16-pin (ATX 3.1)
Recommended PSU 1000W
Cooling Solution TRIO Triple-Fan Design
📐 Physical Dimensions
Card Dimensions 359 × 149 × 70 mm
Card Weight 2119g
Package Weight 2735g
Slot Width 3.5 Slots
🛠️ Advanced Features
DirectX Support DirectX 12 Ultimate
OpenGL Support OpenGL 4.6
HDCP Support Yes
VR Ready Yes
Model Name G5090-32GTC
Nvidia RTX 5090 32G GAMING TRIO OC
