Description
MSI

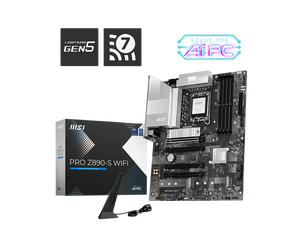

PRO Z890-S WIFI
Professional Intel Z890 Motherboard
Intel Core Ultra Ready
Supports Intel® Core™ Ultra Processors (Series 2) with LGA 1851 socket for next-generation performance
DDR5-8800+ Support
Dual Channel DDR5 with overclocking support up to 8800+ MT/s for lightning-fast memory performance
Enhanced Power Design
12+1+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU connectors, and 6-layer server-grade PCB
Frozr Guard Cooling
Extended heatsinks, MOSFET thermal pads (7W/mK), and M.2 Shield Frozr for optimal thermal management
EZ DIY Features
EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna for simplified installation and maintenance
Premium Connectivity
Thunderbolt™ 4, Wi-Fi 7, 2.5G LAN, and comprehensive USB options for professional workflows
Thunderbolt™ 4
40 Gbps • 8K Display • Daisy-Chain
Wi-Fi 7
5.8 Gbps • 6GHz Band • MU-MIMO
PCIe 5.0
Lightning Gen 5 x4 M.2 • x16 Slot
2.5G LAN
Realtek 8125D • Professional Grade
Technical Specifications
Core Platform
Chipset
Intel Z890
CPU Socket
LGA 1851
Form Factor
ATX (243.84mm x 304.8mm)
PCB Layers
6-Layer Server Grade
Memory Support
Type
4x DDR5 UDIMM
Capacity
Maximum 256GB
Speed
DDR5-8800+ (OC) DDR5-6400 (JEDEC)
Features
XMP 3.0, CUDIMM Support, Dual-Controller
Expansion Slots
PCIe Slots
4x PCIe x16 slots
PCI_E1
PCIe 5.0 x16 (CPU)
PCI_E2
PCIe 3.0 x1 (Chipset)
PCI_E3/4
PCIe 4.0 x4 (Chipset/CPU)
Storage
M.2 Slots
3x M.2 (2280/2260/2242)
M.2_1
PCIe 5.0 x4 (CPU)
M.2_2/3
PCIe 4.0 x4 (Chipset)
SATA
4x SATA 6Gb/s
RAID
0, 1, 5, 10 (SATA/NVMe)
Connectivity
Ethernet
Realtek 8125D 2.5Gbps
Wireless
Intel Wi-Fi 7 (5.8Gbps)
Bluetooth
Bluetooth 5.4
Thunderbolt
1x Thunderbolt 4 (40Gbps)
USB Ports
USB 2.0
4x Front Panel
USB 3.2
6x Rear + 2x Front (5Gbps)
USB-C
2x Type-C (20Gbps)
Display Outputs
HDMI
HDMI 2.1 (4K@60Hz)
DisplayPort
DP 1.4 (4K@60Hz)
USB-C DP
DP 2.1 UHBR20 (8K@60Hz)
Audio & Features
Audio
Realtek ALC897 (7.1-CH HD)
RGB
3x ARGB V2 + 1x RGB
Debug LED
4x EZ Debug LED
Security
TPM 2.0 Header
