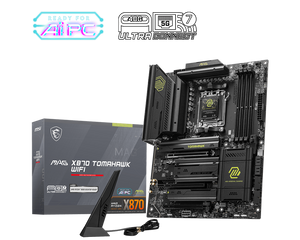

MSI MAG X870 TOMAHAWK WIFI
Advanced motherboard with robust design for AMD Ryzen systems
| • | Supports AMD Ryzen 9000 / 8000 / 7000 processors with 14+2+1 Duet Rail power system |
| • | Wi-Fi 7 technology with Realtek 5G LAN and ultra-fast USB4 ports |
| • | PCIe 5.0 support and Gen 5 M.2 ports for ultra-fast storage |
| Chipset | AMD X870 |
| CPU |
Supports AMD Ryzen 9000 / 8000 / 7000 Desktop Processors AM5 Socket |
| Memory |
4 DDR5 UDIMM slots, maximum capacity 256GB Supports DDR5 8400 - 5600 (OC) and 5600 - 4800 (JEDEC) Supports up to 8400+ MT/s with single rank memory Supports dual channel mode Supports AMD EXPO memory technology |
| Integrated Graphics |
HDMI 2.1 port supporting 8K 60Hz 2 Type-C DisplayPort ports USB4 port supporting DisplayPort 1.4 with 4K 60Hz * Available only with processors that include integrated graphics |
| Expansion Slots |
3 PCI-E x16 slots: - 1st slot: PCIe 5.0 x16 (from CPU) - 2nd slot: PCIe 3.0 x1 (from chipset) - 3rd slot: PCIe 4.0 x4 (from chipset) |
| Audio |
Realtek ALC4080 amplifier High-quality 7.1 channel audio Supports up to 32-bit/384kHz playback Supports S/PDIF output |
| Storage |
4 M.2 slots: - M.2_1: PCIe 5.0 x4 (from CPU), supports 22110/2280 - M.2_2: PCIe 5.0 x4 (from CPU), supports 2280/2260 - M.2_3: PCIe 4.0 x2 (from chipset), supports 2280/2260 - M.2_4: PCIe 4.0 x4 (from chipset), supports 2280/2260 4 SATA 6G ports |
| Multi-GPU | Supports AMD MULTI-GPU |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
| USB Ports |
Rear ports: - 4× USB 2.0 - 3× USB 5Gbps Type A - 2× USB 10Gbps Type A - 1× USB 10Gbps Type C - 2× USB 40Gbps Type C (USB4) Front ports: - 4× USB 2.0 - 4× USB 5Gbps Type A - 1× USB 20Gbps Type C |
| Network | Realtek 8126-CG 5G LAN |
| Wireless & Bluetooth |
Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 5.8Gbps Supports Bluetooth 5.4 |
| Internal Connectors |
1× Power connector (ATX_PWR) 2× CPU power connectors (CPU_PWR) 1× Power connector (PCIE_PWR 8pin) 1× CPU fan 1× Pump/system fan 6× System fans 3× Addressable RGB connectors (JARGB_V2) 1× RGB connector (JRGB) |
| Lighting Features |
4× EZ Debug LED 1× EZ Digit Debug LED |
| Board Information | ATX Size: 304.8 × 243.84 mm |
| Additional Features | Frozr Guard EZ M.2 Shield Frozr II EZ M.2 Clip II EZ PCIe Release Audio Boost 5 |
| Warranty | 3 Years Local Warranty by KiroMina |
Additional Information
| Choose Option |
Motherboard ONLY, Full Pc |
|---|
MSI MAG X870 TOMAHAWK WIFI
