Description

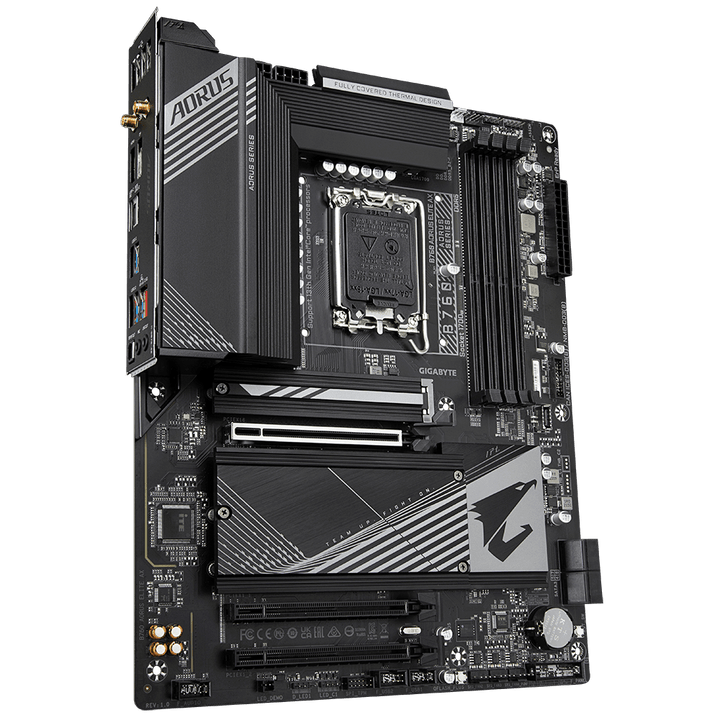

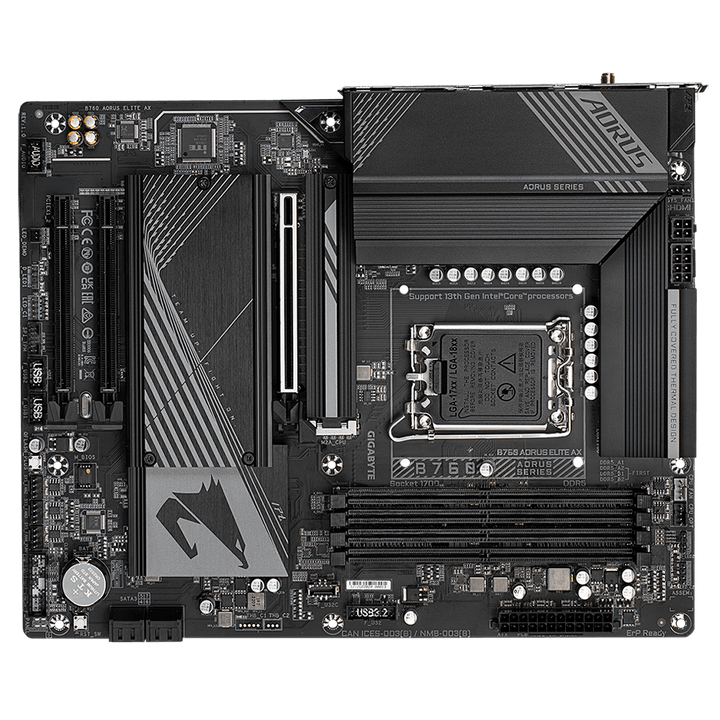

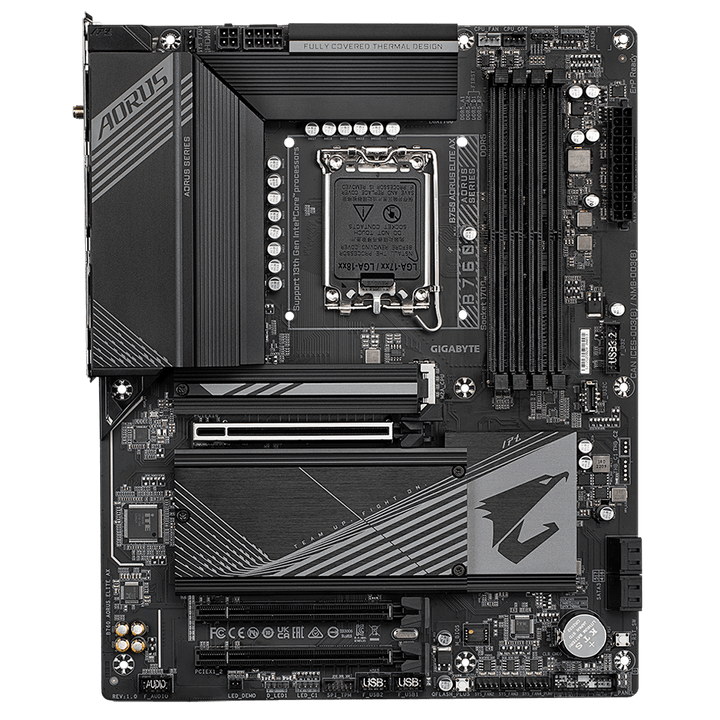

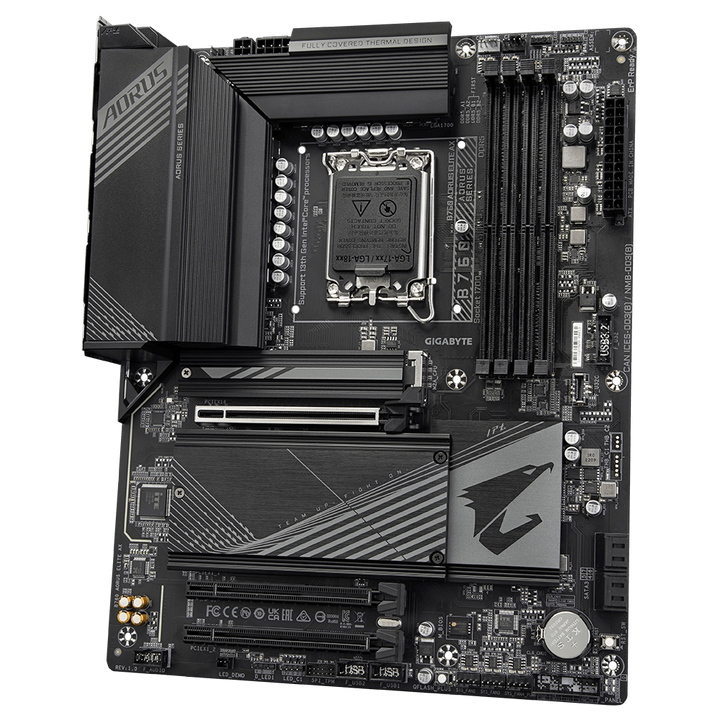

B760 Gaming Motherboard
Intel B760 Express chipset supporting 14th, 13th, and 12th Gen processors with advanced thermal design and next-generation connectivity.
Twin 12+1+1 Phase VRM
Unparalleled power stability
DDR5 up to 7800MHz
XMP 3.0 memory support
3x PCIe 4.0 M.2
High-speed storage ready
Wi-Fi 6E & 2.5GbE
Ultra-fast networking
LGA1700
Advanced Connectivity
Multiple high-speed interfaces for modern computing needs
USB-C 10Gb/s
Front and rear USB Type-C ports with USB 3.2 Gen 2 support
Wi-Fi 6E
2.4Gbps wireless with 2.4/5/6 GHz bands and Bluetooth 5.3
2.5GbE LAN
Realtek 2.5 Gigabit Ethernet for ultra-fast wired connections
4K Display Output
HDMI 2.1 and DisplayPort 1.2 supporting up to 4096×2160@60Hz
M.2 Thermal Guard
Three M.2 slots with thermal protection for optimal SSD performance
Q-Flash Plus
Update BIOS without CPU, memory, or graphics card installed
Technical Specifications
🔧 Processor Support
Socket LGA1700
Supported CPUs Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron
Chipset Intel B760 Express
VRM Design Twin 12+1+1 Phase Digital
💾 Memory Support
Memory Type DDR5
Max Speed DDR5-7800 (O.C.)
Capacity Up to 256GB (4x64GB)
Architecture Dual Channel
XMP Support XMP 3.0
🔌 Expansion Slots
PCIe x16 1x PCIe 4.0 x16 (CPU)
PCIe x1 2x PCIe 3.0 x1 (Chipset)
M.2 Slots 3x M.2 Socket 3 (PCIe 4.0 x4)
SATA 4x SATA 6Gb/s
RAID Support 0, 1, 5, 10
🌐 Networking
Ethernet Realtek 2.5GbE LAN
WiFi Wi-Fi 6E (2.4Gbps)
Bluetooth Bluetooth 5.3
Frequency Bands 2.4/5/6 GHz
🔌 USB & Ports
USB-C 2x USB Type-C (3.2 Gen 2)
USB 3.2 Gen 2 1x USB Type-A (Red)
USB 3.2 Gen 1 4x Ports + 2x Internal
USB 2.0 8x Ports (4 rear, 4 internal)
🖥️ Display & Audio
HDMI HDMI 2.1 (4096×2160@60Hz)
DisplayPort DP 1.2 (4096×2304@60Hz)
Audio Realtek HD Audio
Audio Channels 7.1 Channel Support
S/PDIF Optical Out
⚙️ Advanced Features
Smart Fan Smart Fan 6 with FAN STOP
RGB Lighting 2x ARGB + 2x RGB Headers
BIOS AMI UEFI BIOS
Q-Flash Plus CPU-less BIOS Update
Form Factor ATX (30.5 × 24.4 cm)
💻 System Support
OS Support Windows 11/10 64-bit
TPM TPM 2.0 Header
Control Software GIGABYTE Control Center
Security Norton Internet Security
GIGABYTE B760 Aorus ELITE AX DDR5
