Description
PLATINUM
850W
FULLY MODULAR
XG Series Platinum
Model MPG-8501-AFBAP-X
General Specifications | |
Power Output | 850W |
80 PLUS Rating | 80 PLUS Platinum |
Efficiency | ≥ 92% @ Typical Load |
Form Factor | ATX |
Series | XG Series |
ATX Version | Intel ATX 12V Ver. 2.53 |
PFC | Active PFC |
Modular Type | Fully Modular |
Category | Above 750W |
Dimensions (L x W x H) | 160 x 150 x 86 mm |
Fan | 135mm - Two Ball Bearing |
Performance | |
Hold Up Time | ≥ 16ms |
Fan Speed | 1800 RPM |
Connectors | |
Connectors |
ATX 24 Pin x1 EPS 4+4 Pin / 4+4 x1 PCI-e 6+2 Pin x6 12VHPWR x1 SATA x12 Peripheral-4 Pin x4 |
Protection & Certification | |
Protections | OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection / Surge and Inrush Protection |
Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |

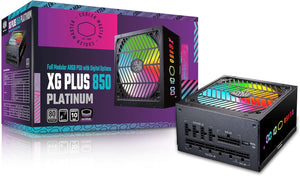

Cooler Master XG Platinum Plus 850W A/EU Cable
LE 9,000.00
