Description
MPX-8503-AFAG-2
MWE Gold Series • Fully Modular • ATX 3.1
80 PLUS Gold
Fully Modular
ATX 3.1 Ready
Active PFC
850W
Total Power
≥90%
Efficiency
120mm
HDB Fan
100K+
MTBF Hours
Technical Specifications
ATX Version ATX 12V Ver. 3.1
Input Voltage 100-240V
Input Frequency 50-60Hz
Input Current 10-5A
Dimensions 160 x 150 x 86 mm
Fan Speed 2500 RPM
Fan Bearing HDB
Operating Temp 0-40°C
Power Good Signal 100-150 ms
Hold Up Time ≥16ms @ 80% Load
ErP 2014 Lot 3 Yes
Protections OPP/OVP/OTP/OCP/SCP/UVP
Power Connectors
ATX 24-Pin
1x
EPS 4+4 Pin
1x
EPS 8-Pin
1x
12V-2x6 (ATX 3.1)
1x
PCI-e 6+2 Pin
4x
SATA
6x
Peripheral 4-Pin
2x

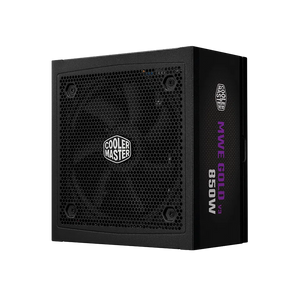

Cooler Master MWE GOLD 850 V3 ATX 3.1
