Description
AMD Ryzen 7 9800X3D Processor Specifications

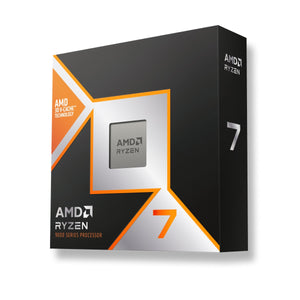

AMD Ryzen 7 9800X3D
Advanced Gaming Processor with Second-Generation 3D V-Cache Technology
| • | Zen 5 Architecture with 8 Cores and 16 Processing Threads |
| • | Massive 96MB Cache Enabled by 3D V-Cache Technology |
| • | Base Frequency of 4.7 GHz with Boost Up to 5.2 GHz |
| Name | AMD Ryzen 7 9800X3D |
| Family | Ryzen |
| Architecture | Zen 5 |
| Processor Cores | 8 |
| Simultaneous Multithreading (SMT) | Yes |
| Processing Threads | 16 |
| Maximum Boost Frequency | Up to 5.2 GHz |
| Base Frequency | 4.7 GHz |
| L3 Cache | 96 MB 3D V-Cache |
| Thermal Design Power (TDP) | 120 Watts |
| Manufacturing Process | TSMC 4nm FinFET |
| Supported Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Supported Instructions | AVX512 AVX2 AVX SSE4.2 AES x86-64 |
| Graphics Model | AMD Radeon Graphics |
| Graphics Cores | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort™ Support | Yes |
| Supported Operating Systems |
Windows 11 - 64-bit Windows 10 - 64-bit RHEL x86 64-bit Ubuntu x86 64-bit |
Additional Information
| Choose Option |
CPU Only, Full Pc |
|---|
AMD Ryzen 7 9800X 3D
