Description
AMD Ryzen 7 5700X
AMD
Ryzen 5000 Series · Vermeer · Zen 3
Ryzen™ 7 5700X 100-100000926WOF · AM4 · Enthusiast Desktop
Socket
AM4
Architecture
Zen 3
Launch
04 / 2022
Segment
Enthusiast
Cores / Threads
8 / 16
SMT Enabled
Boost Clock
4.6
GHz Max
Base Clock
3.4
GHz
L3 Cache
32
MB
Default TDP
65
Watts
Max Memory
128
GB DDR4
Performance
Cores8
Threads16 (SMT)
Max BoostUp to 4.6 GHz
Base Clock3.4 GHz
Boost TechPrecision Boost 2
ISAx86-64
Cache Hierarchy
Compatibility
Supported Chipsets
X570
X470
B550
B450
X370
B350
A520
OverclockingUnlocked
Max Tj90°C
CoolerNot Included
OS SupportWin 11 / Win 10 64-bit
RHEL · Ubuntu x86 64-bit
RHEL · Ubuntu x86 64-bit
Instruction Extensions
AESAMD-VAVX
AVX2FMA3MMX+
SHASSESSE2
SSE3SSE4.1SSE4.2
SSE4ASSSE3x86-64
Memory & Storage
TypeDDR4
ChannelsDual Channel
Max Capacity128 GB
DIMM TypeUDIMM
ECC SupportYes (mobo required)
| Config | Max Speed |
|---|---|
| 2× 1R | DDR4-3200 |
| 2× 2R | DDR4-3200 |
| 4× 1R | DDR4-2933 |
| 4× 2R | DDR4-2667 |
PCIe & I/O
PCIe VersionPCIe 4.0
Total / Usable Lanes24 / 20
NVMe SupportBoot · RAID0 · RAID1 · RAID10
Native SATA2 Ports
USB 3.2 Gen 24 Ports (10Gbps)
USB 3.2 Gen 10
USB 2.00
GraphicsDiscrete Card Required
Extra PCIe (Mobo)
X57016× Gen 4
X4702× Gen 3 + 8× Gen 2
Product IDs
Boxed100-100000926WOF
Tray100-000000926
MPK100-100000926NPK
Thermal Design Power
65
WATTS
Default TDP · No Cooler Included
Process Node
CPU Compute Die (CCD)
TSMC 7nm FinFET
74mm²
I/O Die (IOD)
GlobalFoundries 12nm
125mm²
Die Count2 (CCD + IOD)
Platform
SocketAM4
ArchitectureZen 3
CodenameVermeer
AvailabilityGlobal
Additional Information
| Model |
Ryzen7 5700X MPK, Ryzen7 5700X box |
|---|

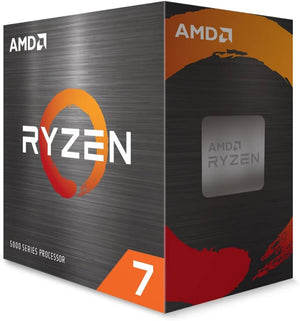

AMD Ryzen 7 5700x
LE 8,300.00
