Description

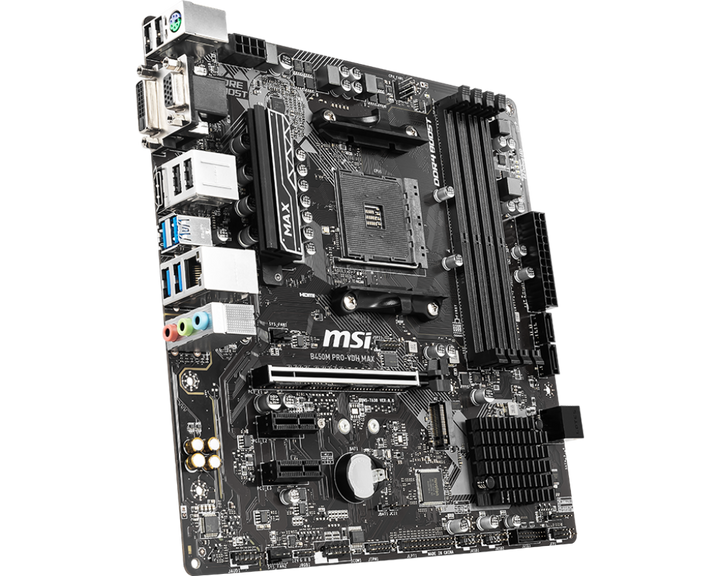

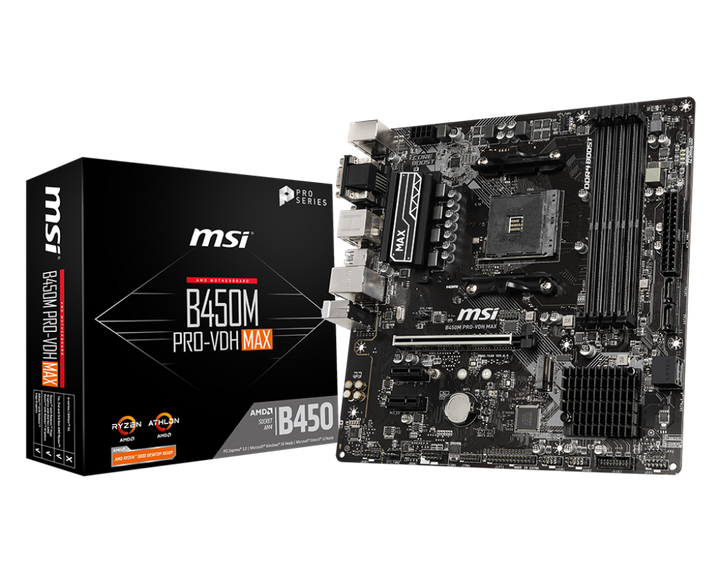

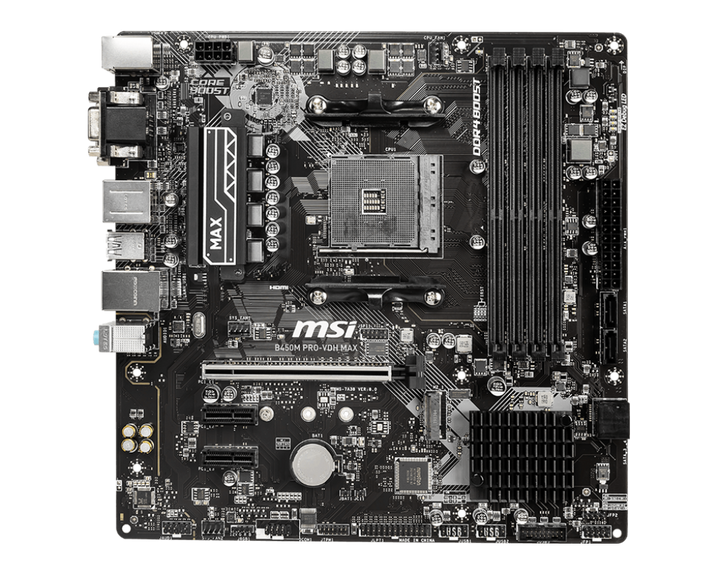

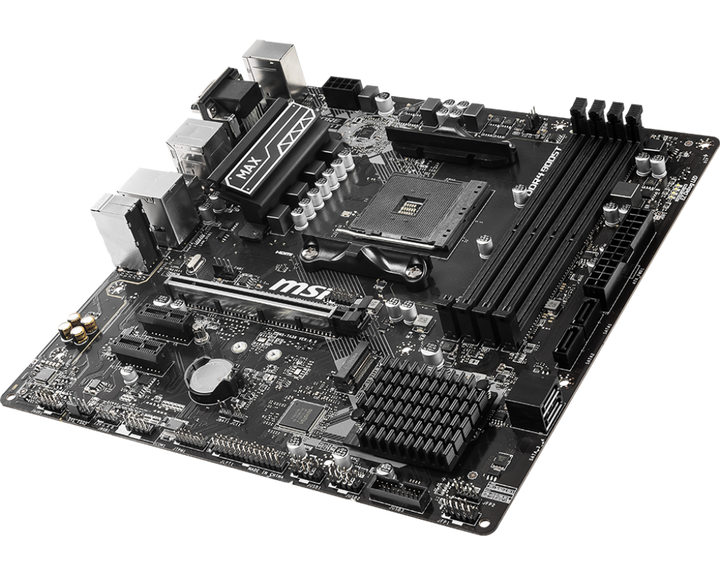

MSI B450M PRO-VDH MAX
AM4 Motherboard with AMD B450 Chipset
Wide Processor Compatibility
Supports 1st, 2nd, and 3rd Gen AMD Ryzen processors and Athlon processors with Radeon Vega Graphics for AM4 socket.
AMD B450 Chipset
AMD's balanced B450 chipset provides excellent performance and multiple options.
Advanced Memory Support
4 DDR4 memory slots supporting up to 128GB with overclocking capabilities via A-XMP OC MODE.
Dual Channel Mode
Support for dual channel memory mode to enhance performance.
Processor Compatibility
1st Gen Ryzen Processors
- Ryzen 3/5/7
- Ryzen with Radeon Vega Graphics
2nd Gen Ryzen Processors
- Ryzen 3/5/7
- Ryzen with Radeon Graphics
- Athlon with Radeon Vega Graphics
3rd Gen Ryzen Processors
- Ryzen 3/5/7/9
Memory Specifications
| Number of Memory Slots | 4 × DDR4 |
| Maximum Memory | 128GB (requires BIOS based on ComboPI 1.0.0.3 and above) |
| Supported JEDEC Frequencies | 1866 / 2133 / 2400 / 2667 MHz |
A-XMP OC Mode Frequencies
3rd Gen Ryzen Processors (R5/R7/R9)
- 2667 MHz
- 2800 MHz
- 2933 MHz
- 3000 MHz
- 3066 MHz
- 3200 MHz
- 3466 MHz
- 3733 MHz
- 3866 MHz
Other AMD Processors
- 2667 MHz
- 2800 MHz
- 2933 MHz
- 3000 MHz
- 3066 MHz
- 3200 MHz
- 3466 MHz
Additional Memory Options
| Dual Channel Mode Support | Yes |
| ECC UDIMM Memory Support | Yes (in non-ECC mode) |
| Non-ECC UDIMM Memory Support | Yes |
* Achieving 128GB capacity requires a BIOS update to a version based on ComboPI 1.0.0.3 or higher
For more information, please visit the MSI website: https://www.msi.com/Motherboard/B450M-PRO-VDH-MAX/Specification
